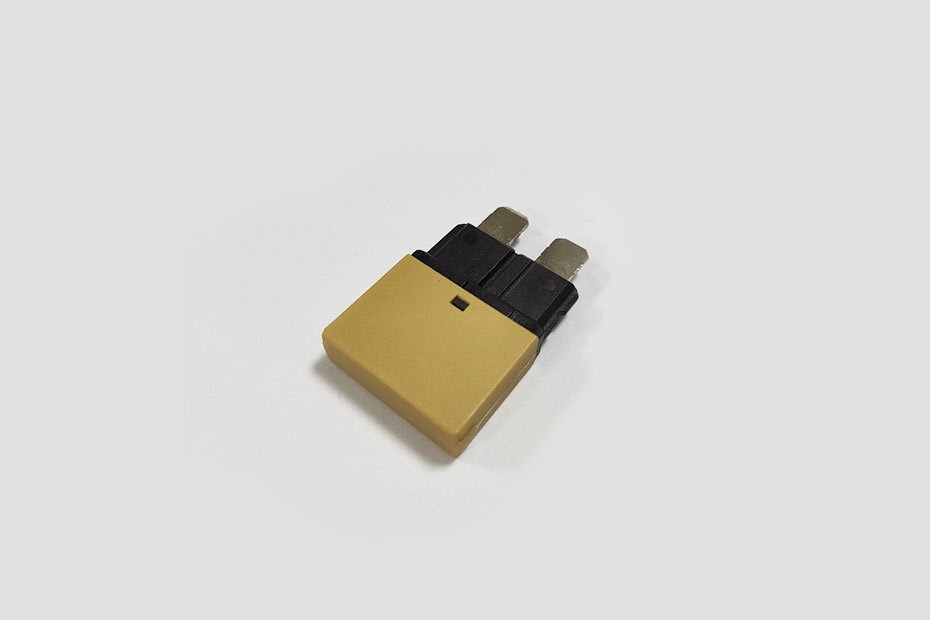

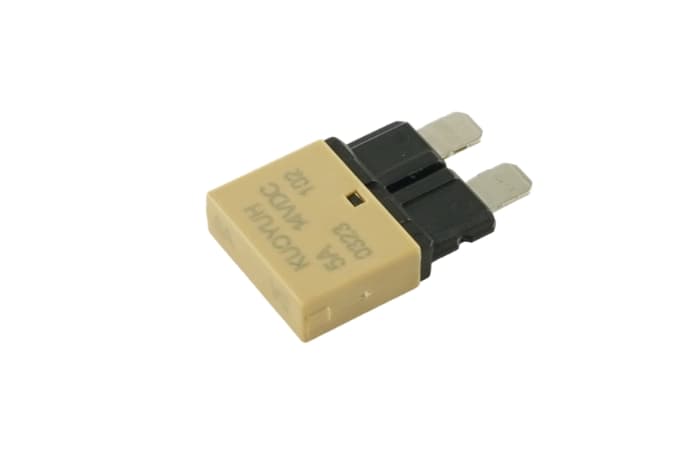

KUOYUH 102 Series 5A Blade Circuit Breaker

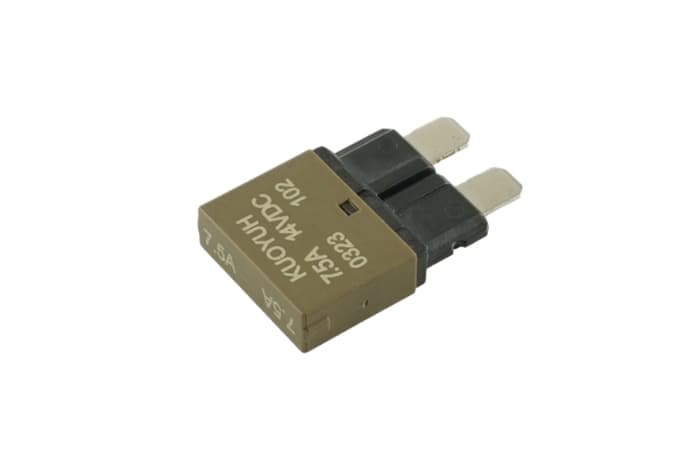

KUOYUH 102 Series 7.5A Blade Type Circuit Breaker

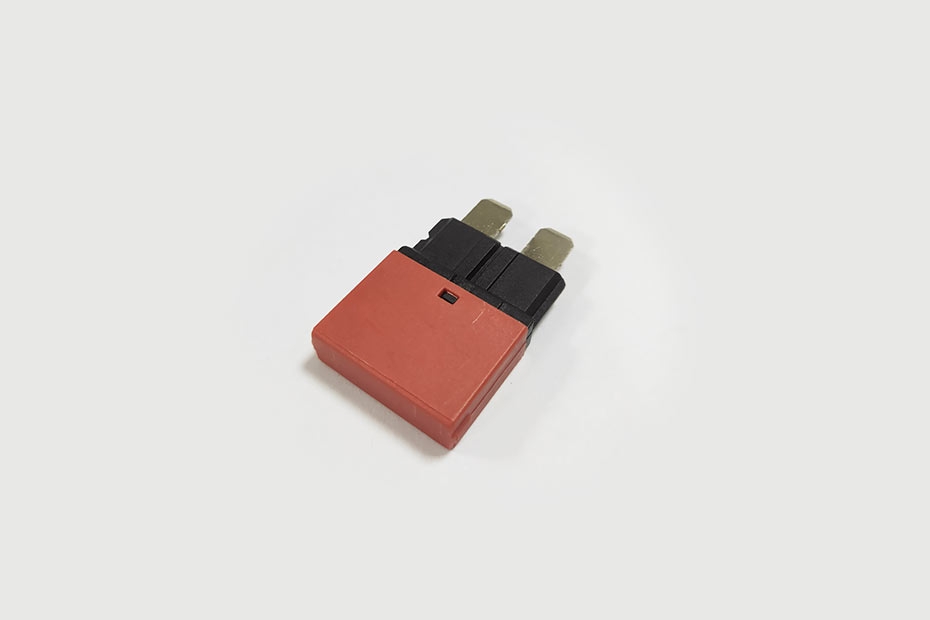

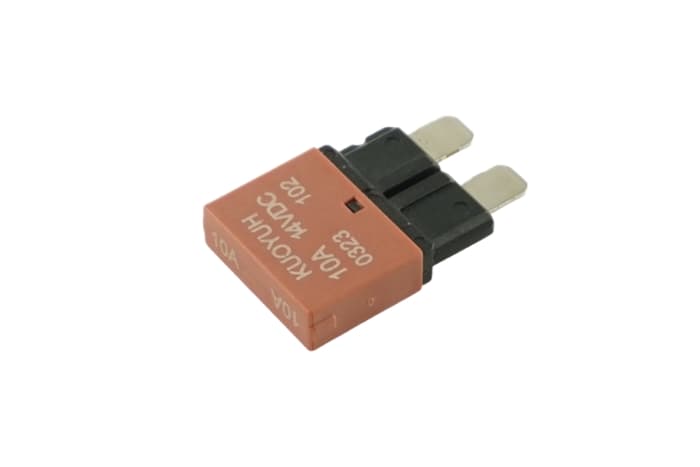

KUOYUH 102 Series 10A Blade Style Circuit Breaker

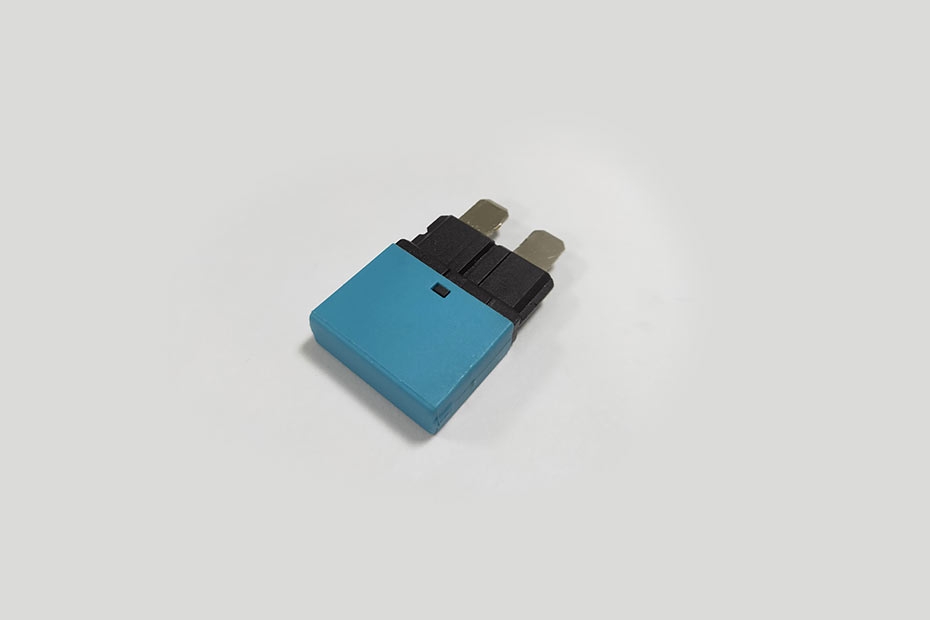

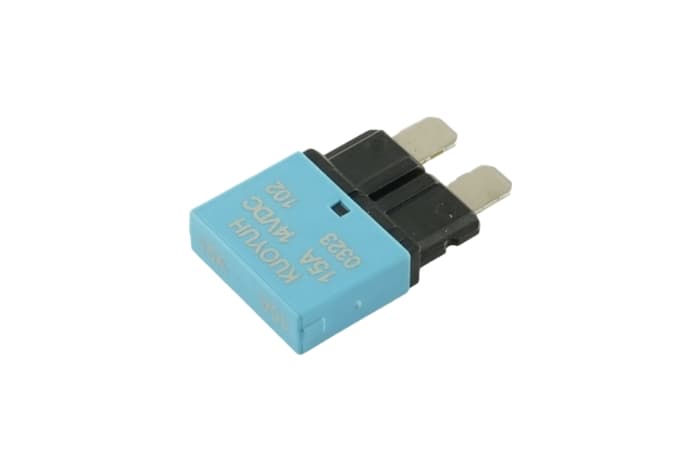

KUOYUH 102 Series 15A Automotive Blade Fuse Circuit Breaker

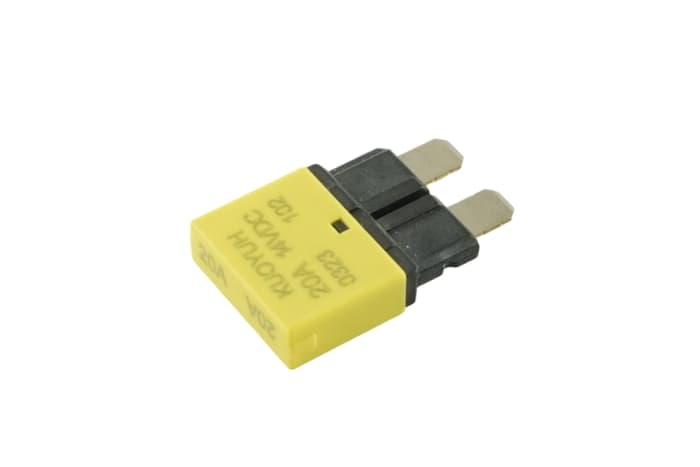

KUOYUH 102 Series 20A Car Blade Fuse Circuit Breaker

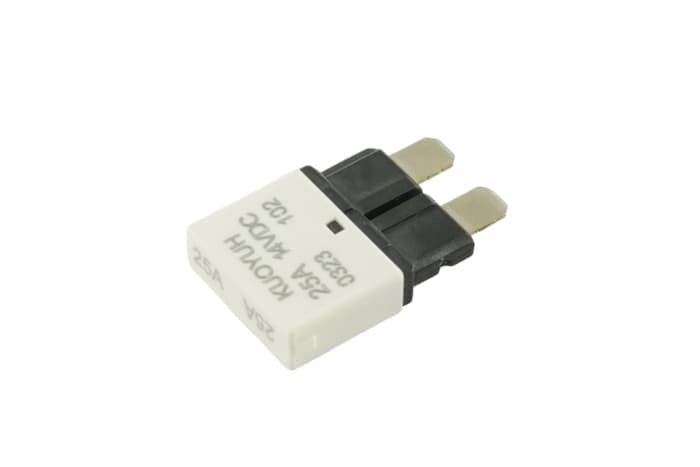

KUOYUH 102 Series 25A Auto Resettable Blade Fuse Circuit Breaker

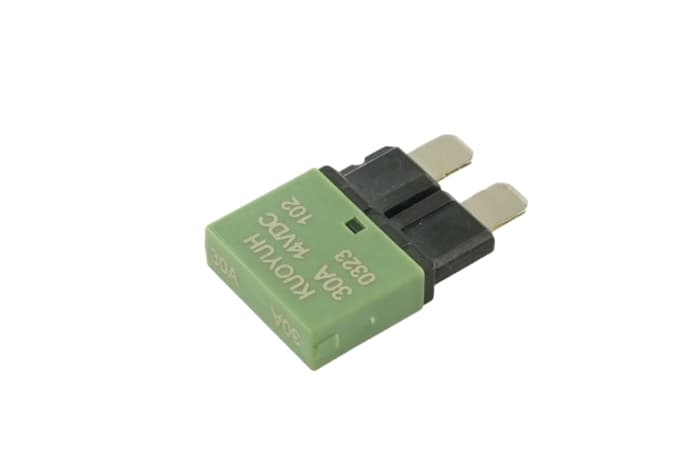

KUOYUH 102 Series 30A Automatic Reset Blade Fuse Circuit Breaker
Product Name : 102 Series Blade Fuse Circuit Breaker
Product Description

102 Series blade fuse circuit breaker is a unipolar and freecycle trip protection device. Commonly known as ATC/ATO blade circuit breaker.

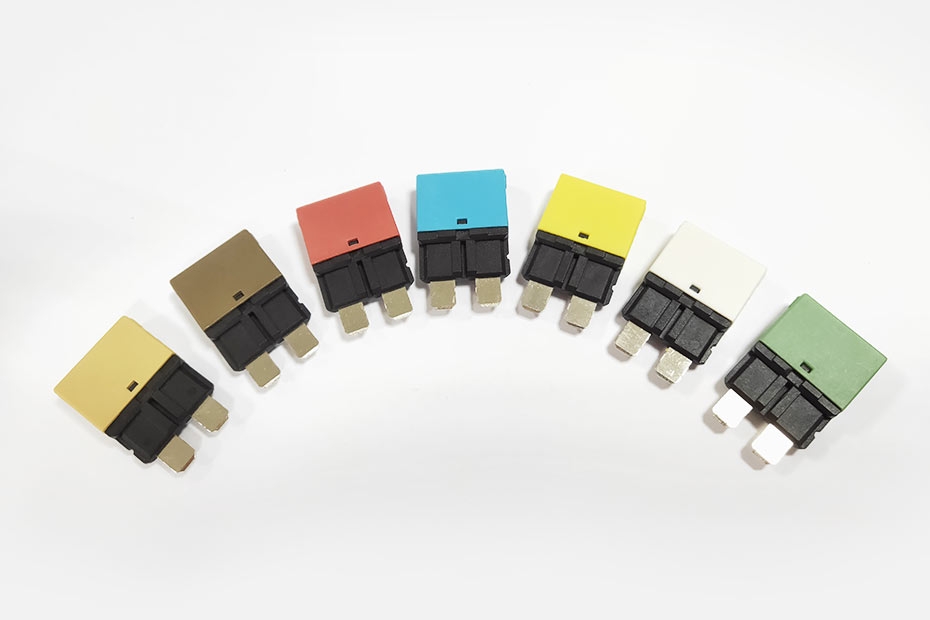

The body of 102 series blade type circuit breakers is made of thermosetting plastic. Plastic cover. Like the fuse, the ampere is distinguished by the color of the cover. It is a circuit breaker designed for the installation of automotive fuse holders.

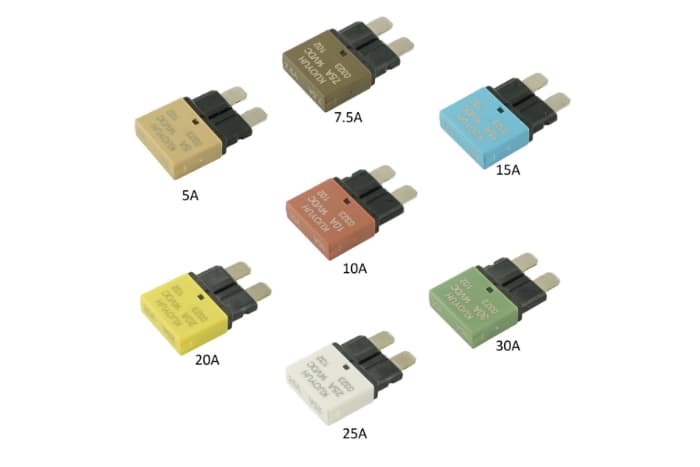

KOUYUH offers blade fuse circuit breakers from 5A to 30A, They are suitable for ATC type fuse blocks, marine, RV Car, battery protection, etc.

Our products have passed UL certification and RoHS environmental protection certification; we are surely the blade circuit breaker manufacturer that you need. We are looking forward to working with you. Contact us now!

Inquiry
Product Introduction

Key Features

  1. Following SAE J553 Standard and SAE J1171 Standard.
  2. Trip Free Cycling.
  3. Use UL-Rated 94V-0 Thermosetting plastics body.
  4. Ignition Protected, following SAE J1171; UL 1500 Standard.

Ratings

  1. Current rating range : 5A--30A
  2. Input voltage rating : 32VDC
  3. Interrupting Capacity : 2,000A / 28VDC

Testing Performed

  1. Current test : 200% current full-inspect test
  2. Dielectric Strength Test : 1500VAC/min

Safety Certification

  • Electrical appliances certification : SAE

Add-on Service

Regarding laser printing, we provide OEM service. (not yet)

As for package, we provide customers with customized services.
