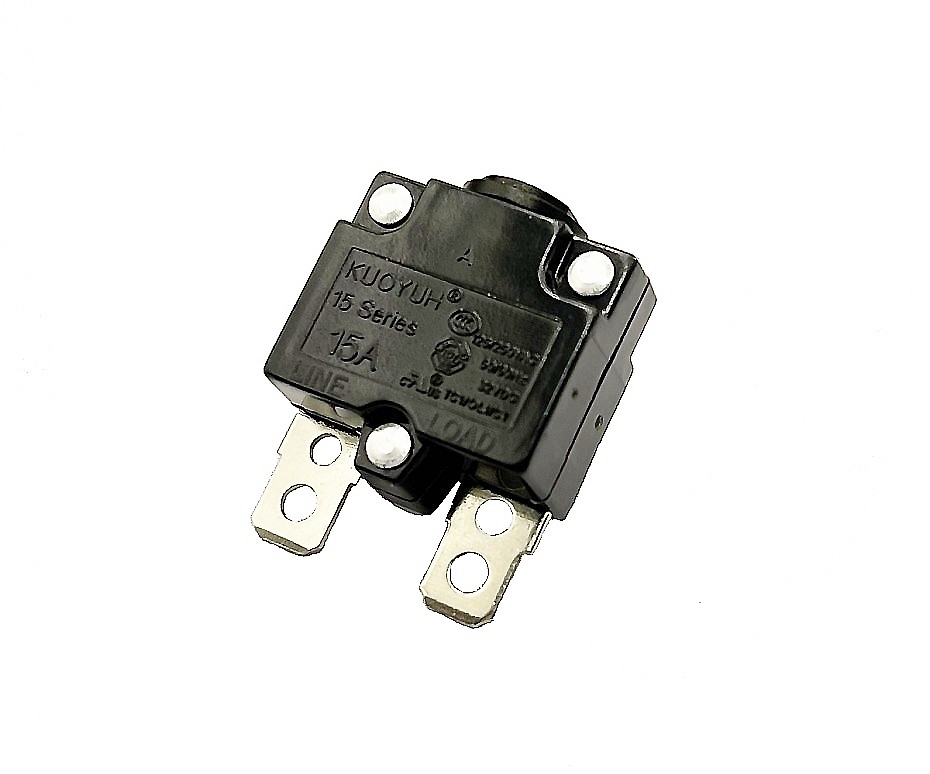

15 Series 15A Push-To-Reset Circuit Breaker

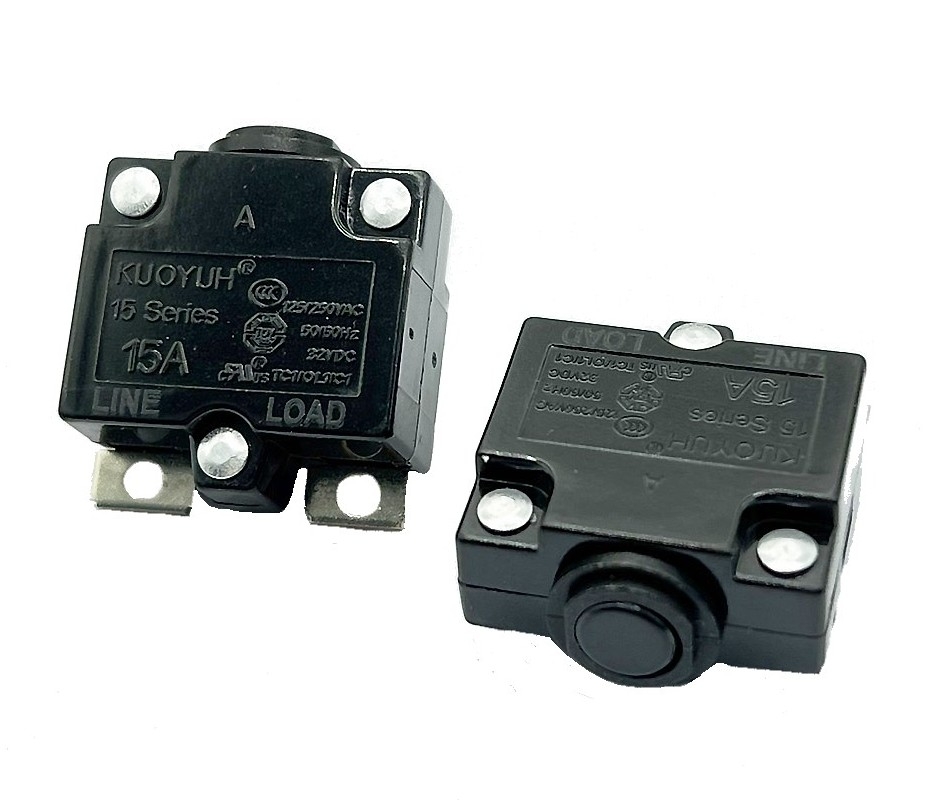

15 Series 15A Push-To-Reset Circuit Breaker

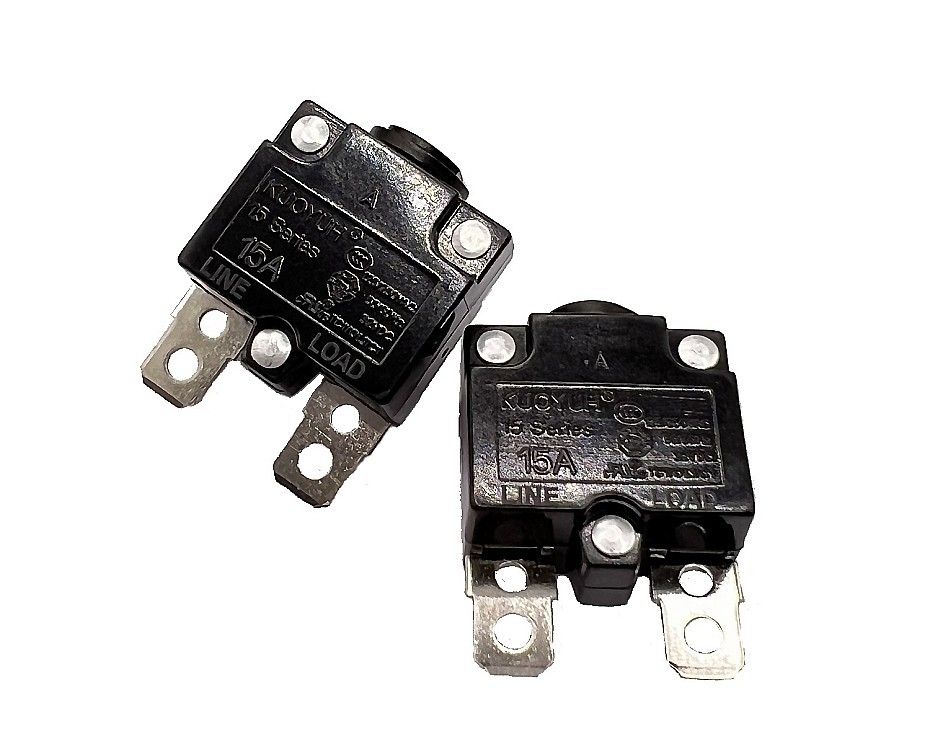

15 Series 15A Push-To-Reset Circuit Breaker

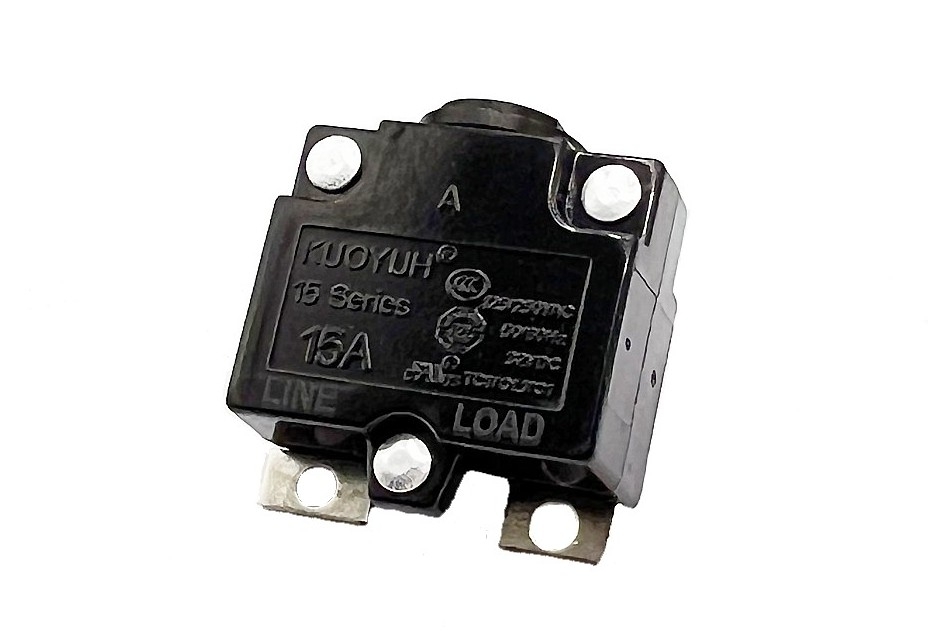

15 Series 15A Push-To-Reset Circuit Breaker
Product Name : 15 Series Push-To-Reset Circuit Breaker
Product Description

15 series push-to-reset circuit breaker is a unipolar, single-push reset thermal protector product, used to protect motor equipment.

Use bakelite as the main body, which can endure 750° in the glow-wire test.

15 Series is 2-20 amps, suitable for power strips, extension cords, children's electric cars, etc.

TUV(Europe)UL/CUL(North America), CCC(China), passed RoHS environmental protection certification.

Inquiry
Product Introduction

Key Features

  1. Following UL1077 Standard.
  2. (Cadmium-free contacts) Comply with European environmental protection requirements.
  3. Use a bakelite body, high-temperature resistance, and better safety.
  4. Trip Free Cycling.

Ratings

  1. Current rating range: 2--20A
  2. Input voltage rating: 125/250VAC; 32VDC
  3. Interrupting Capacity : 125/250VAC x 1,000A (UL 1077)

Testing Performed

  1. Current test: 200% current full-inspect test
  2. Dielectric strength test: 1500VAC/min
  3. Glow wire test: 750 degree

Safety Certification

  • Electrical appliances certification: UL, TUV, CCC
  • Environmental standards: RoHS

Add-on Service

Provide a sleeve to allow customers to install nuts more conveniently and quickly.

Assist customers in selecting protector specifications and measuring temperature rise.

Packing method: provide customers with customized services.
