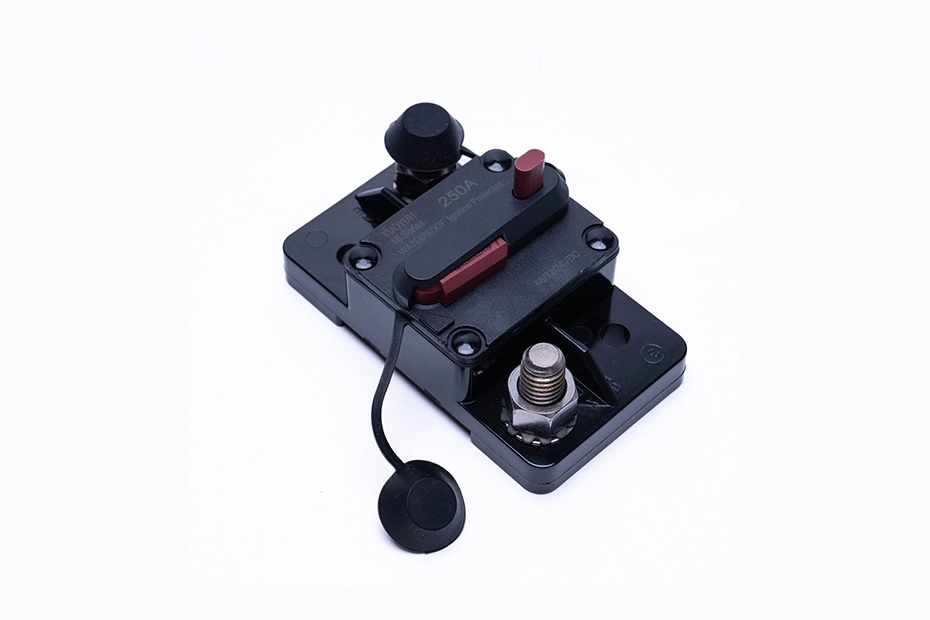

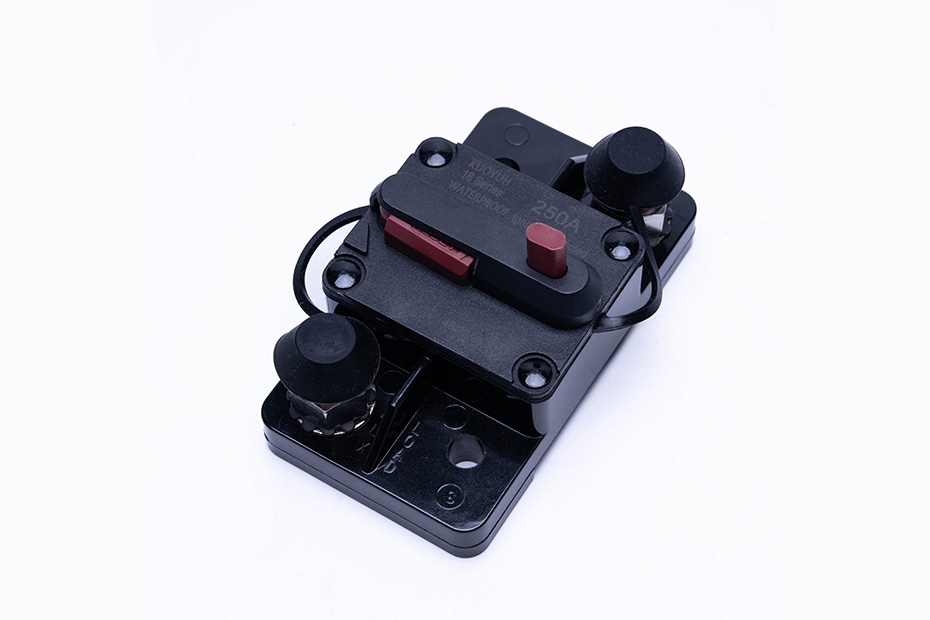

Product Name : 16F-L Surface Mount Switchable 3/8"-16t Studs
Product Description

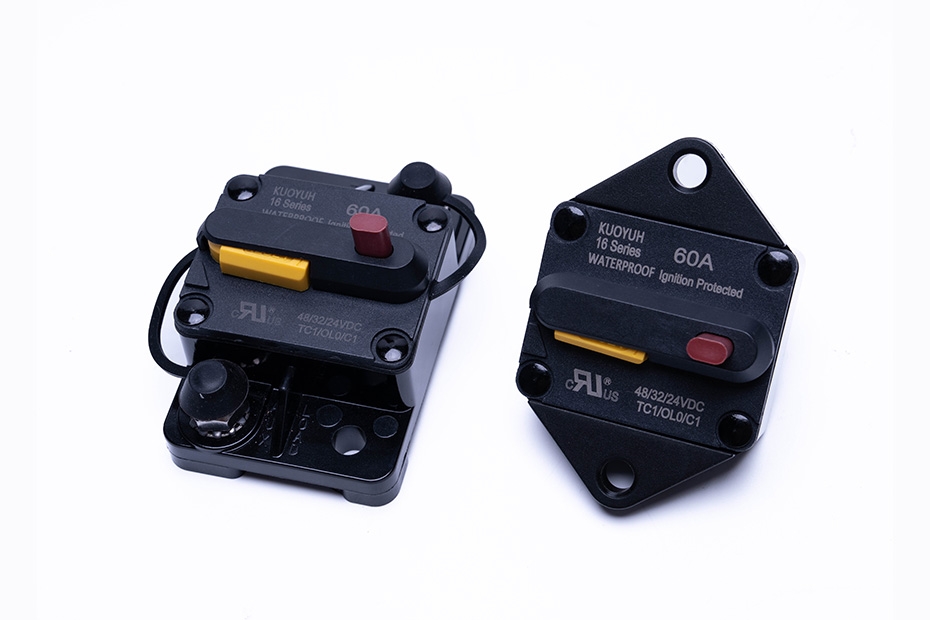

16F series manual reset overload protector is a single-pole, one-key reset thermal circuit protector, which has the functions of a switch and protector. Commonly known as: Hi-amp Circuit Breaker / Heavy Duty Circuit breaker

The body of the 16F series is bakelite, with a dustproof and waterproof design. It is an IP67 waterproof overload protection device. The terminal part is made of stainless steel studs, which are rust-proof and high-strength.

16F series products have a current of 150A-250A, suitable for marine, RV Cars, truck liftgates, ATVs, winches, electric anchors, battery protection, vehicle-mounted inverters, etc.

Passed RoHS environmental protection certification.

Body dimension:3.4*1.9inch / 86.5*48.6mm

Inquiry
Product Introduction

Key Features

  1. Following SAE J553 Standard, SAE J1625 Standard and ABYC-E11 Standard
  2. Dustproof and waterproof design, IP67 waterproof rating
  3. Ignition Protected complies with SAE J1171 & UL 1500 Standard

Ratings

  1. Current rating range: 150A-250A
  2. Input voltage rating: 48VDC (30A---150A), 30VDC (175--- 200A), 14VDC (225---300A)
  3. Interrupting Capacity: 1,500A@48VDC. Type III (30A--150A). 3000A@14VDC. TypeIII (25A--200A)

Testing Performed

  1. Current test: 200% current full-inspect test
  2. Corrosion: 96hrs salt-spray
  3. Torque test: Higher than 10kg*f
  4. Durability test: 10,000 mechanical life tests

Safety Certification

  • Electrical appliances certification: UL
  • Environmental standards: RoHS

Add-on Service

Laser printing: We also provide OEM service.
proimages/product/ignition-protection-circuit-breaker/16fc/6.jpg

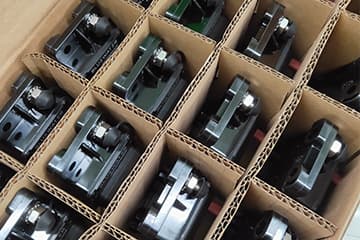

Packing method: provide customers with customized services.
