Product Name : 17 Series Push-To-Reset Circuit Breaker
Product Description

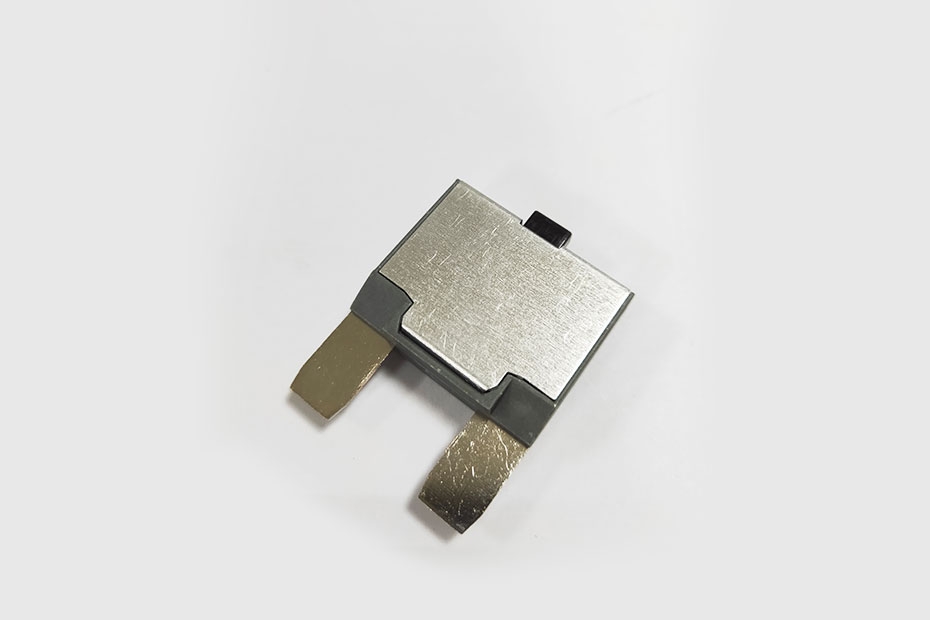

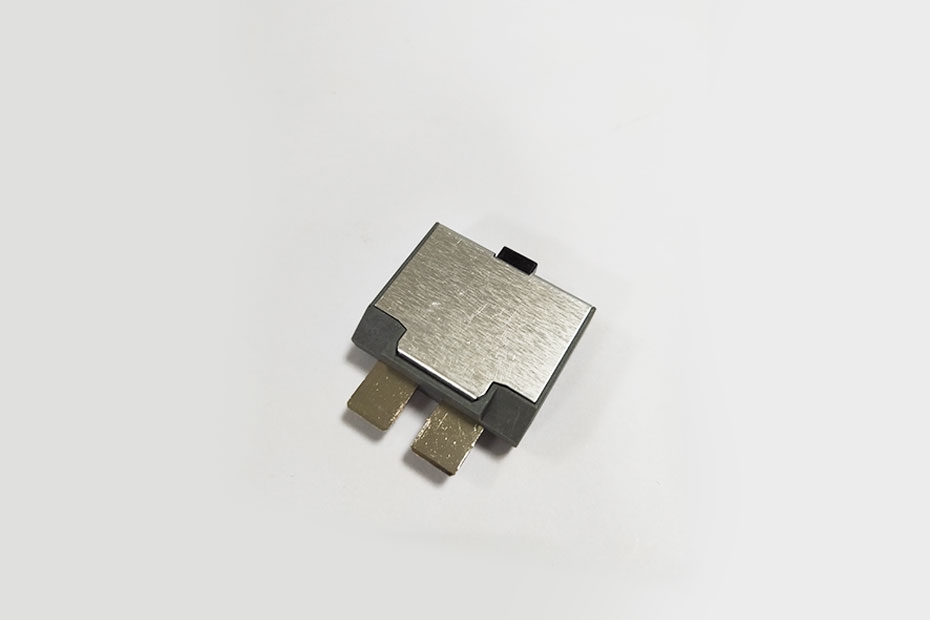

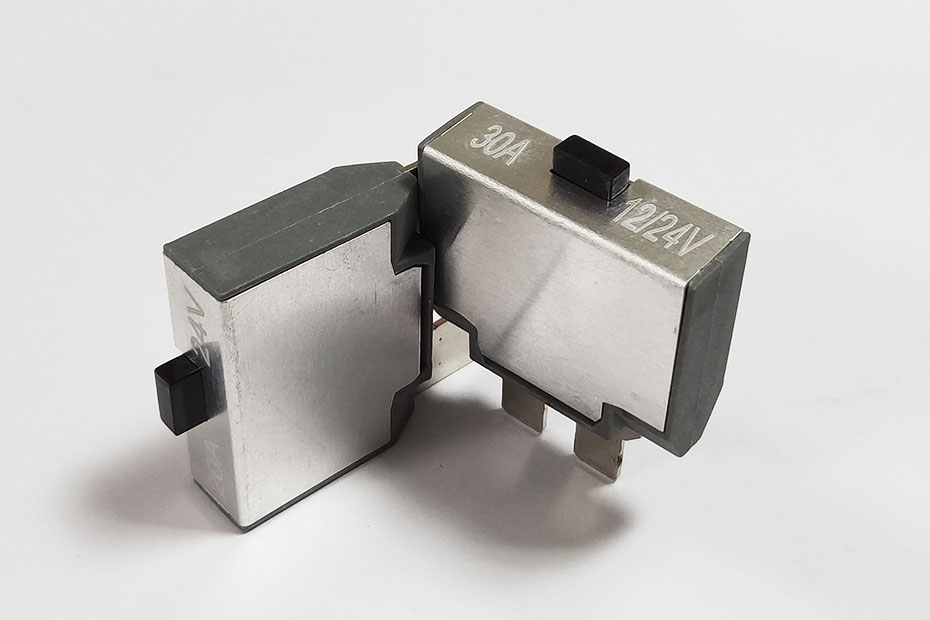

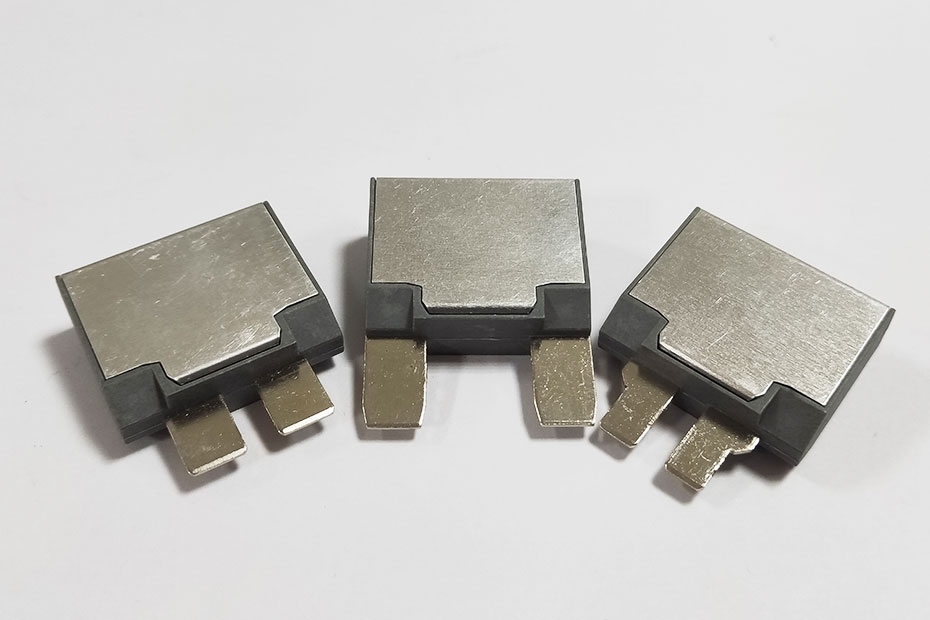

17 Series Push-to-Reset circuit breaker is a single-pole, single-push reset thermal circuit protector. Commonly known as: Maxi Circuit breaker/ATC circuit breaker.

The body of 17 Series products are made of thermosetting plastic. Aluminum cover. The specifications of the automotive fuse terminal is in the size of MAXI blade/ ATC blade. It is a circuit breaker designed for the installation of automotive.

17 Series is 5A--60A, suitable for ATC type fuse blocks, marine, RV Car, battery protection etc.

Passed UL certification. Passed RoHS environmental protection certification…

Inquiry
Product Introduction

Key Features

  1. Following SAE J553 Standard.
  2. The specifications of the automotive fuse terminal is in the size of MAXI blade.
  3. Use UL-Rated 94V-0 Thermosetting plastics body.

Ratings

  1. Current rating range : 5A--60A
  2. Input voltage rating : 28VDC
  3. Interrupting Capacity : 2,000A / 28VDC

Testing Performed

  1. Current test : 200% current full-inspect test
  2. Dielectric Strength Test : 1800V/min

Safety Certification

  • Electrical appliances certification : SAE

Add-on Service

Regarding laser printing, we provide OEM service.

As for package, we provide customers with customized services.
