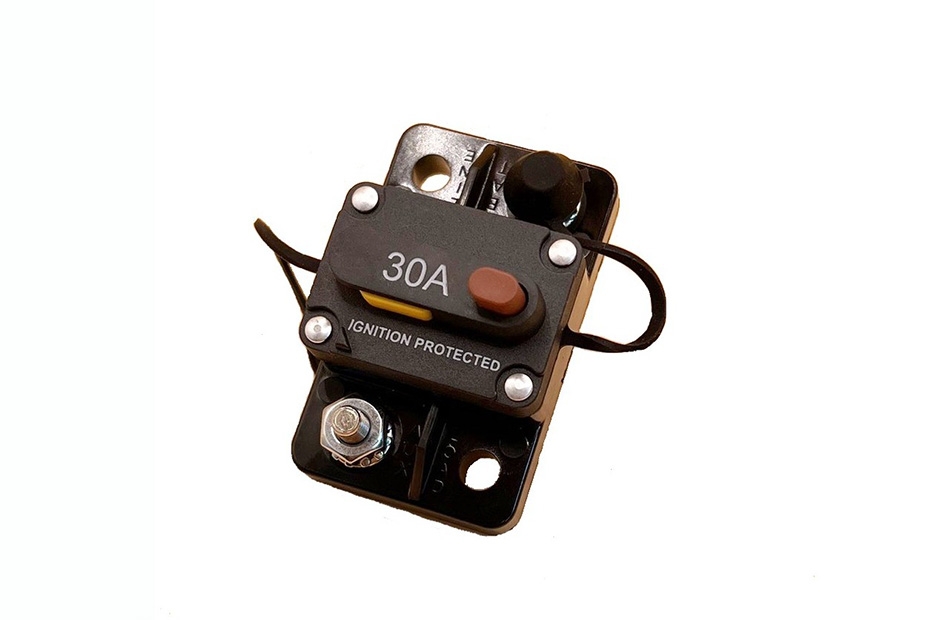

21-8F Surface Mount Circuit Breaker

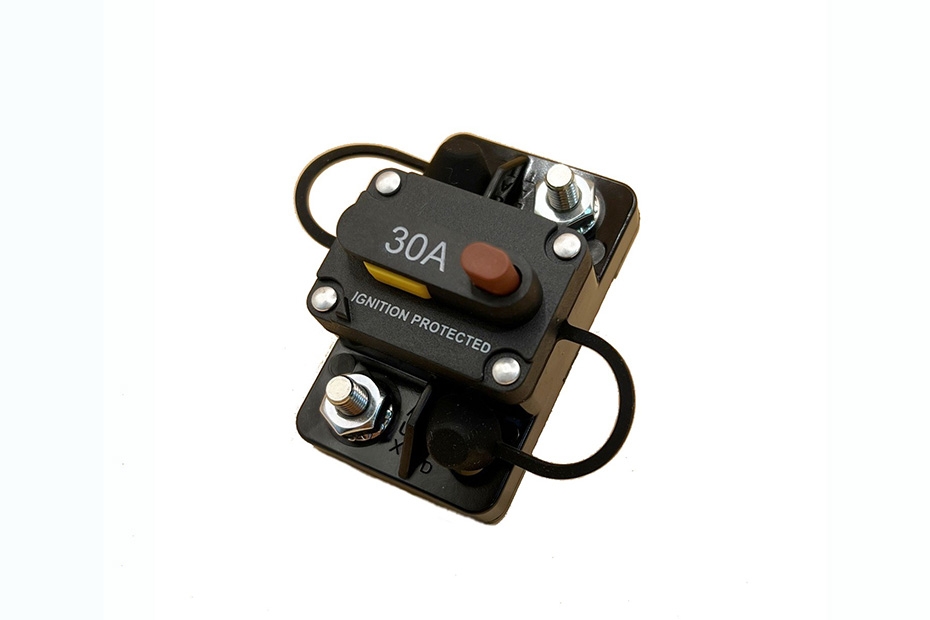

21-8F Surface Mount Circuit Breaker

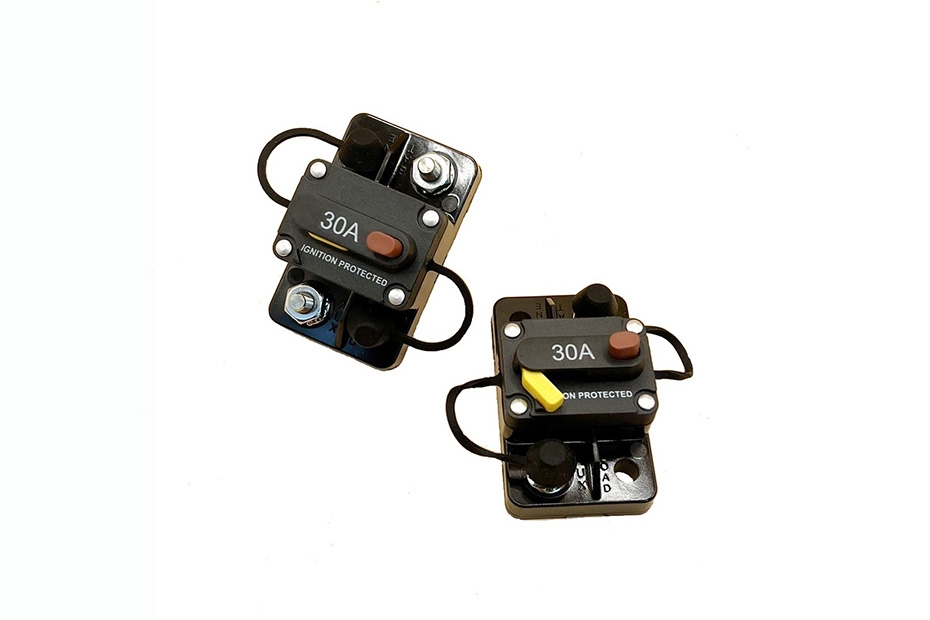

21-8F Surface Mount Circuit Breaker
Product Name : 21-8F Surface Mount Switchable #10-32 threaded studs
Product Description

21-8F series manual reset overload protector is a single-pole, one-key reset thermal circuit protector, which has the functions of switch and protector. Commonly known as: Mid range Circuit breaker

The body of the 21-8F series is bakelite, with dustproof and waterproof design. It is an IP66 waterproof overload protection device. The terminal part is made of stainless steel studs, which are rust-proof and high-strength.

21-8Fseries products have a current of 5A-60A, suitable for marine, RV Cars, truck, cars, etc., use battery isolators to manage and protect batteries in multi-battery devices.

Passed RoHS environmental protection certification.

Body dimension:2.28*1.4inch / 58.0*35.6mm

Inquiry
Product Introduction

Key Features

  1. Following SAE J553 Standard, SAE J1171 Standard and ABYC-E11 Standard
  2. Dustproof and waterproof design, IP66 waterproof rating
  3. Ignition Protected complies with SAE J1171.

Ratings

  1. Current rating range:5A--60A
  2. Input voltage rating:32VDC(T3+Push To Trip)+(T3) / 14VDC(T1)
  3. Interrupt Rating:Circuit protection(2.5kA)

Testing Performed

  1. Current test: 200% current full-inspect test
  2. Corrosion: 96hrs salt-spray
  3. Torque test: 18 in-lb around(2.0Nm)max
  4. Durability test: 10,000 mechanical life tests

Safety Certification

  • Environmental standards: RoHS

Add-on Service

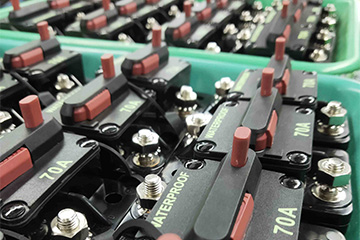

Laser printing: We also provide OEM service.
proimages/product/ignition-protection-circuit-breaker/16fc/6.jpg

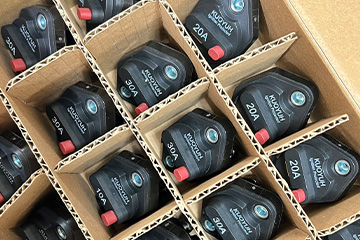

Packing method: provide customers with customized services.
