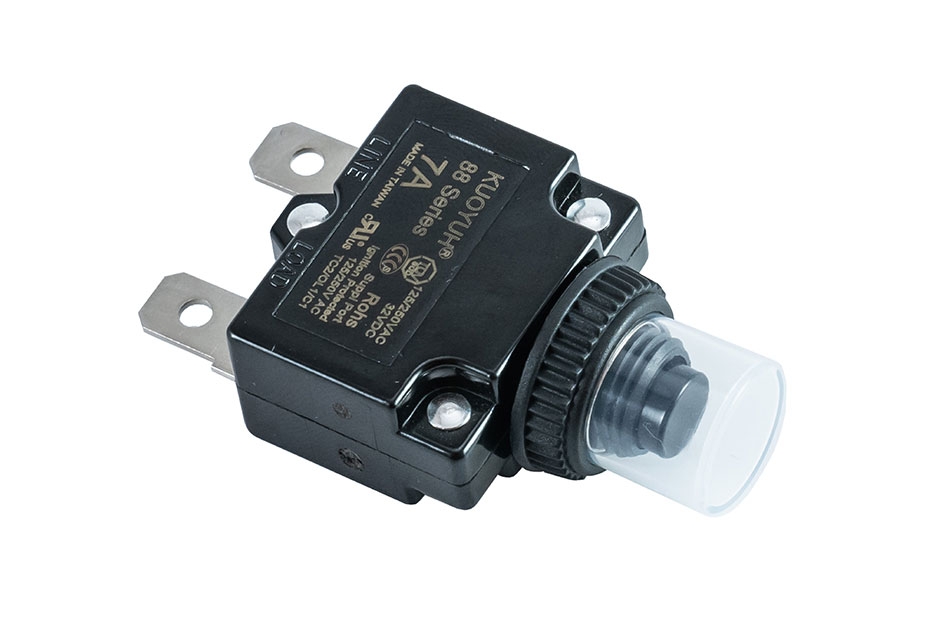

KUOYUH 88 Series 7A Push Button Circuit Breaker

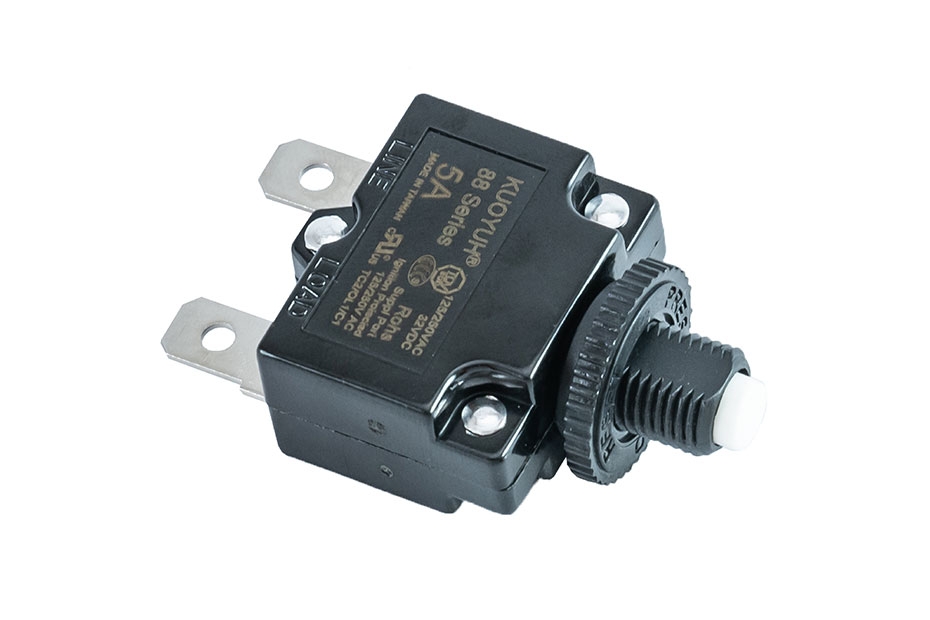

KUOYUH 88 Series 5A Press to Reset Circuit Breakers

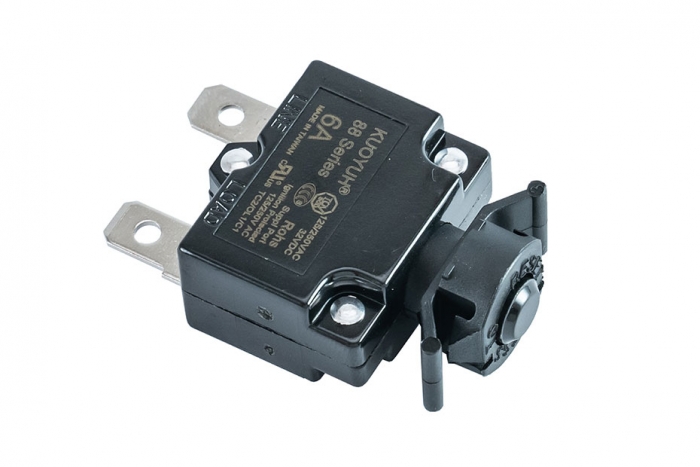

88 Series | 6A Button Circuit Breaker
KUOYUH 88 Series 7A - Press to Reset Circuit Breakers

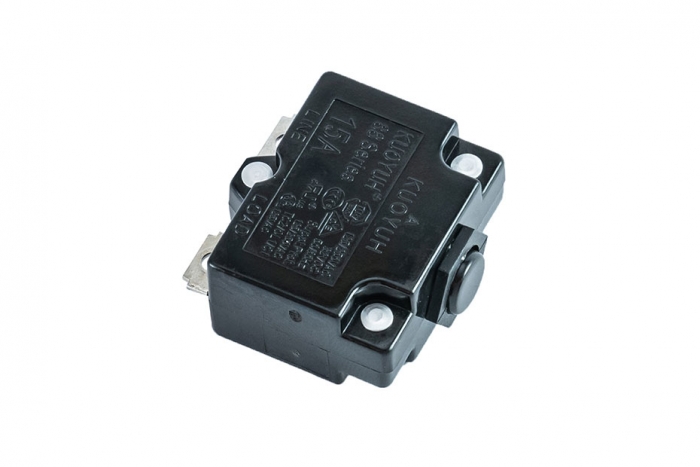

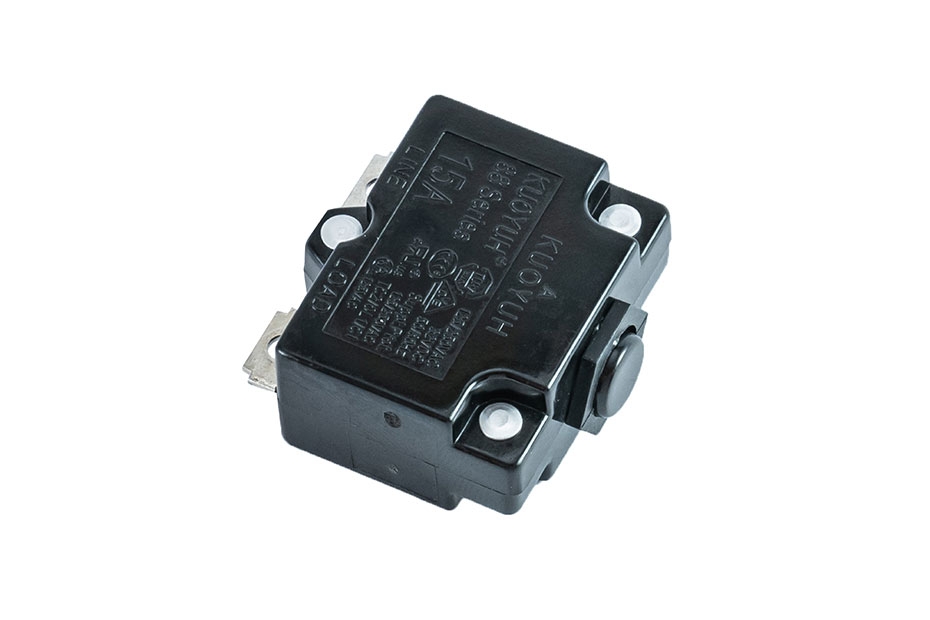

88 Series - 15A Push to Reset Circuit Breakers

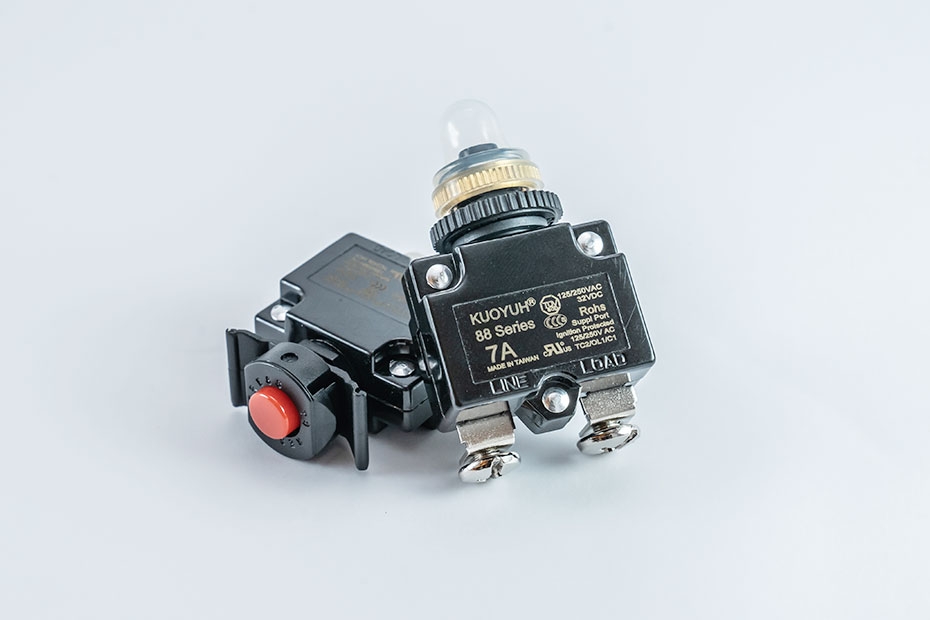

Product Name : 88 Series Push-To-Reset Circuit Breaker
Product Description

88 Series press to reset circuit breaker is a unipolar, single-push reset thermal protector product, used to protect motor equipment. Simple in design, precise in action. It is a reliable circuit protection device.

This Series is the most common and affordable protection device, Use bakelite as the main body, Can endure 850° in glow-wire test, and it provides various accessories such as nuts and waterproof caps to give customers a variety of choices.

88 Series is 3-30 amps, Suitable for power strips, uninterruptible power system(UPS), extension cords, Audio amplifier, blender, meat grinder, marine panel, water pump, generator, motor protection, refrigeration equipment, etc.

UL/CUL(North America), CSA(Canada), CCC(China), TUV(Europe), VDE(Europe), KC(Korea), SAA(Australia) certified.UL1500 Ignition protection Certification certified. Passed RoHS environmental protection certification…

If you need a reliable press to reset circuit breaker supplier, KUOYUH is your ideal choice. Write us an inquiry anytime!

Inquiry
Product Introduction

Key Features

  1. Following UL1077 Standard, EN60934 Standard ,IEC60934 Standard. Comply with UL1500 ignition protection.
  2. (Cadmium free contacts)Comply with European environmental protection requirements.
  3. Use bakelite as the main body. High temperature resistance. High security.
  4. Trip Free Cycling

Ratings

  1. Current rating range : 3--30A
  2. Input voltage rating : 125/250VAC; 32/50VDC
  3. Interrupting Capacity : 125/250VAC x 1,000A(UL 1077)

Testing Performed

  1. Current test : 200% current full-inspect test
  2. Dielectric Strength Test : 1500VAC/min
  3. Glow-wire test : 850°

Safety Certification

  • Electrical appliances certification : UL, CSA, CB, VDE, TUV, CCC, SAA, KC
  • Environmental standards : RoHS, REACH

Add-on Service

Provide sleeves to easen the nuts installation, and increase efficiency.

Assist customers in choosing the specification of protectors. Perform temperature rise test.

As for package, we provide customers with customized services.

Regarding laser printing, we provide OEM service.
