92 Series Push-To-Reset Circuit Breaker

KUOYUH 92 Series Circuit Breakers for Oxygen Concentrator Parts
92 Series 4 Amp Circuit Breakers
92 Series 16 Amp Circuit Breakers

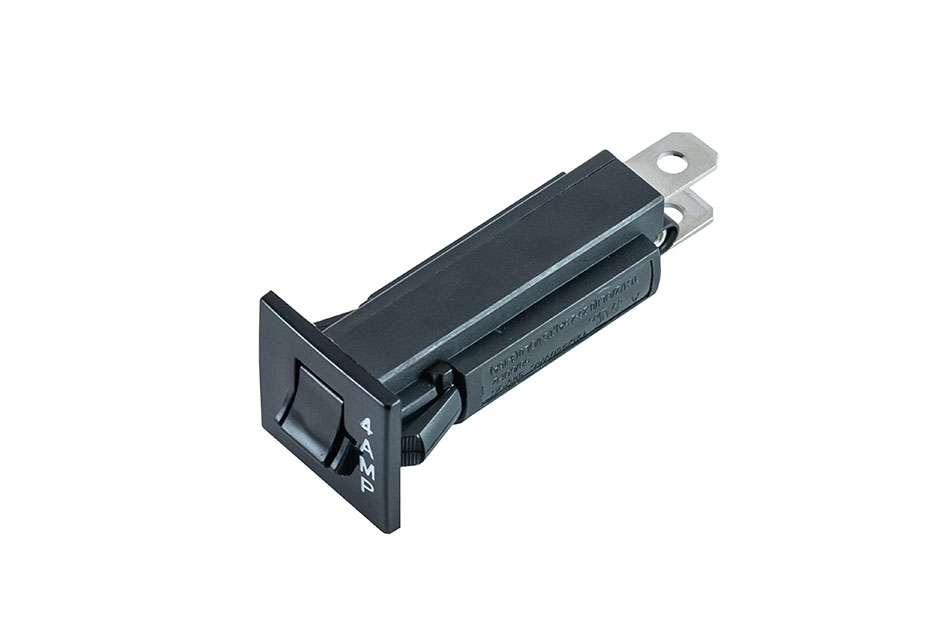

92 Series 4 Amp Circuit Breakers
92 Series 20Amp Circuit Breakers

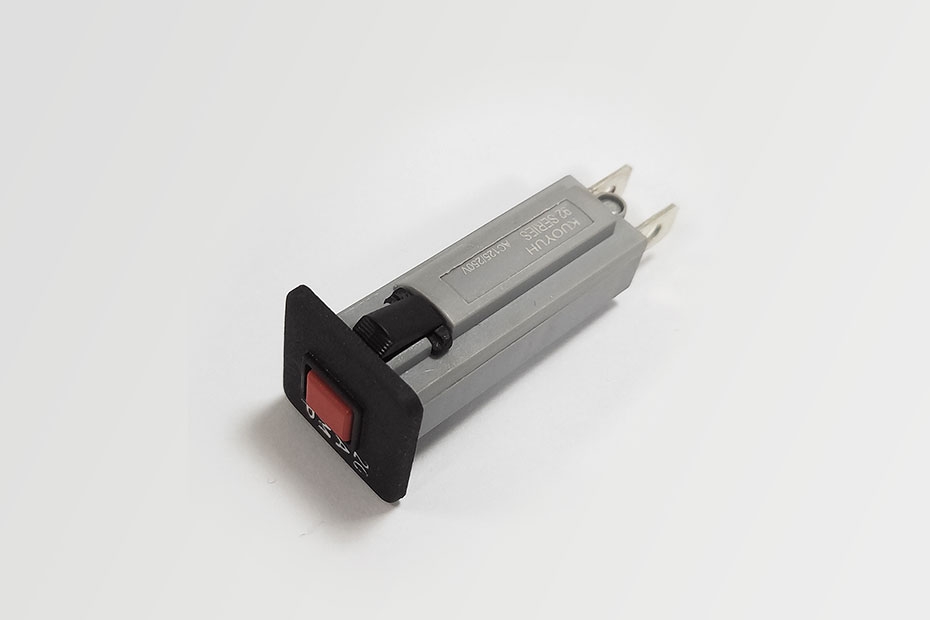

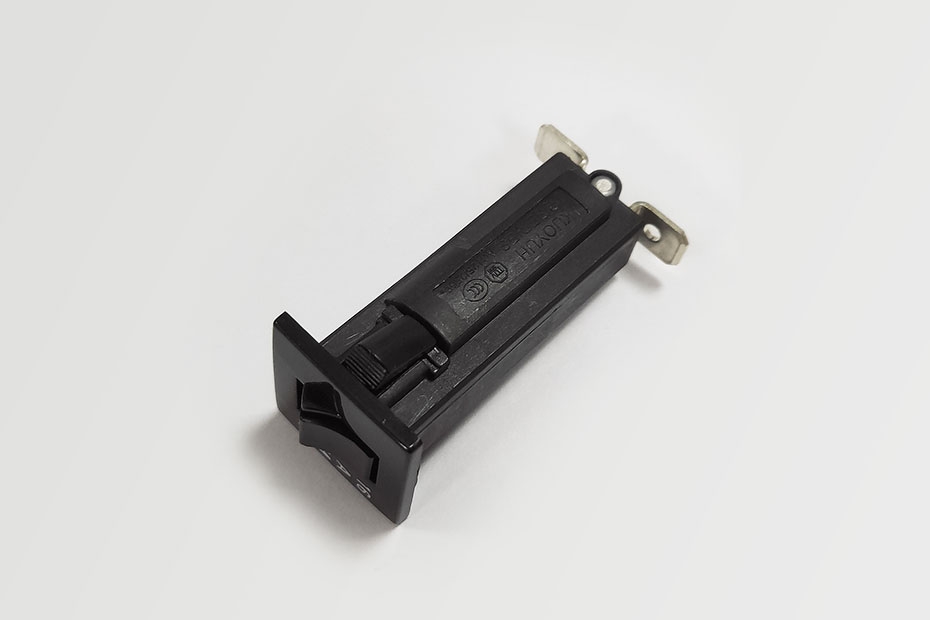

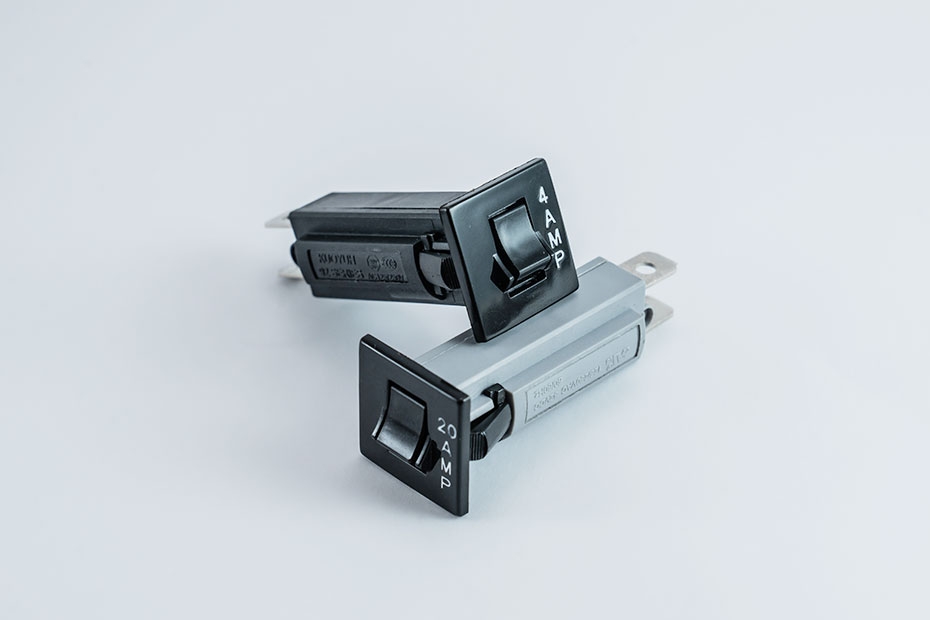

Product Name : 92 Series Push-To-Reset Circuit Breaker
Product Description

92 Series Push-to-Reset circuit breaker is a unipolar, single-push reset thermal protector product, used to protect motor equipment. Precise in design. It is a reliable circuit protection device.

The 92 Series products are slender in volume and suitable for devices with slender volumes. They are current circuit breakers commonly used in the USA and Europe.

92 Series is 0.5A--20A. Suitable for uninterruptible power systems (UPS), power distribution units (PDU), transformers, power strips, HVAC, blenders, oxygen concentrators, Commercial Laundry, Jump starters, etc.

UL/CUL(North America), CCC(China), TUV(Europe), VDE(Europe)) certified. Passed RoHS environmental protection certification…

Inquiry
Product Introduction

Key Features

  1. Following UL1077 Standard, EN60934 Standard, IEC60934 Standard.
  2. Small current circuit breaker. Small in volume. Precise in action.
  3. (Cadmium-free contacts)Comply with European environmental protection requirements.
  4. Trip Free Cycling.

Ratings

  1. Current Rating Range: 0.5A--10A
  2. Input Voltage Rating: 125/250VAC; 32/50VDC
  3. Interrupting Capacity : 125/250VAC x 1,000A(UL 1077)

Testing Performed

  1. Current Test: 200% current full-inspect test
  2. Dielectric Strength Test: 1500VAC/min
  3. Glow-wire Test: 650°

Safety Certification

  • Electrical Appliances Certification: UL, CUL, CCC, CB, TUV, VDE
  • Environmental Standards: RoHS, REACH

Add-on Service

Provide soldering services to solve electric wiring problems.

As for packages, we provide customers with customized services.
