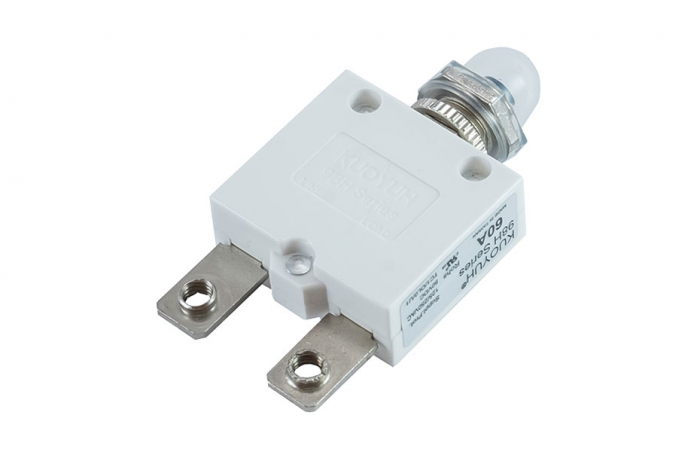

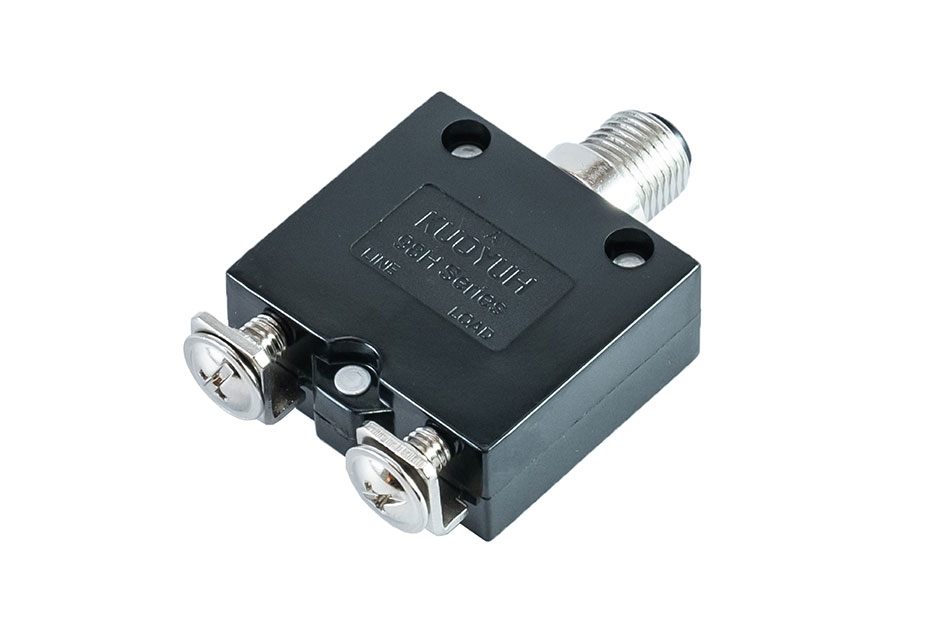

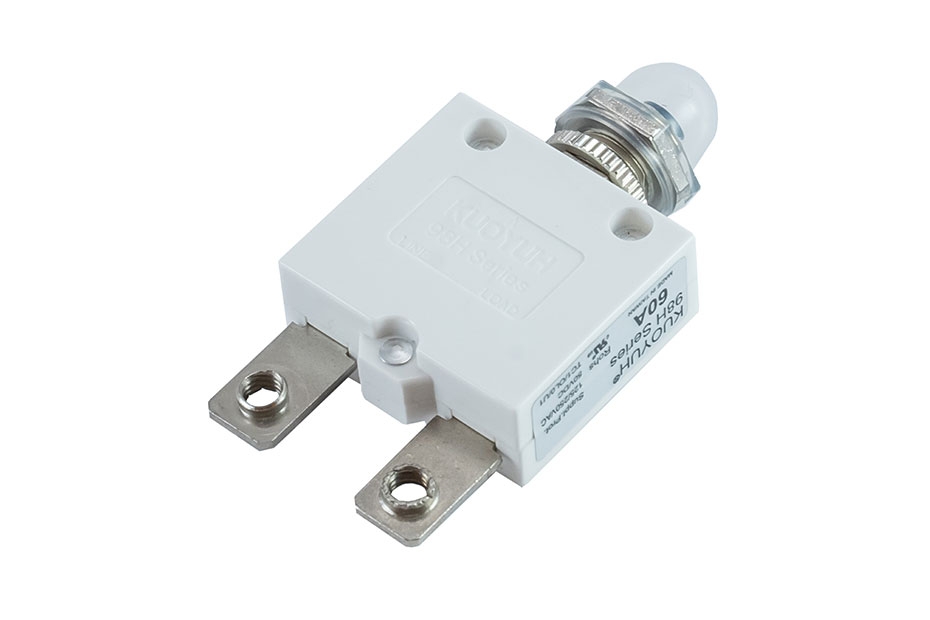

60 amp Push Button Marine Circuit Breaker | 98H Series
98H Series - Marine Push Button Circuit breaker

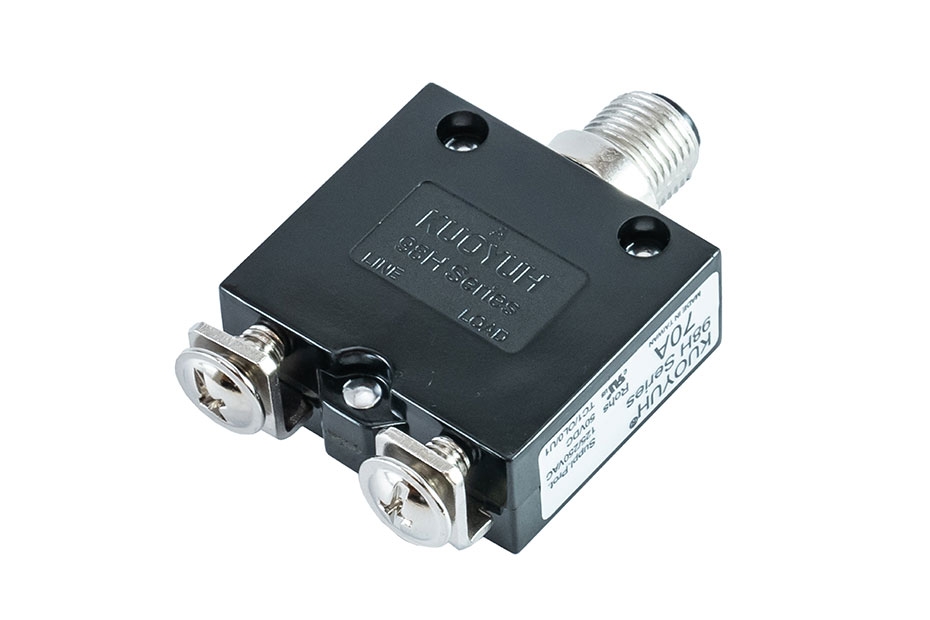

70A Push to Reset Circuit Breaker - 98H Series

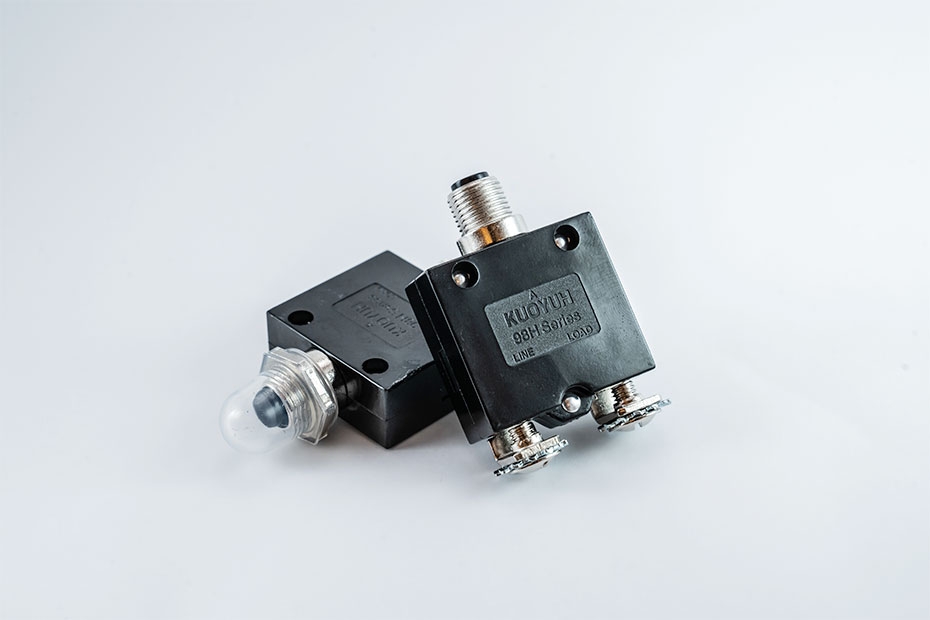

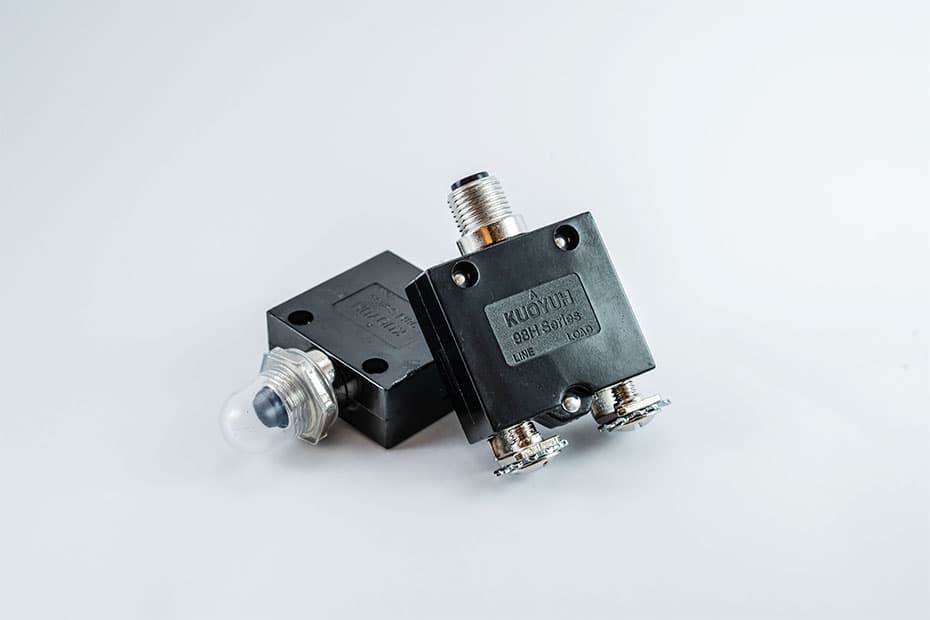

Product Name : 98H Series Push-To-Reset Circuit Breaker
Product Description

98H Series Push-to-Reset circuit breaker is a unipolar, single-push reset thermal protector product, used to protect motor equipment. 98H is a high current circuit breaker, volume is bigger than 98 Series. It is a reliable circuit protection device.

Use bakelite as the main body, Can endure 850° in glow-wire test, and it provides various accessories such as nuts and waterproof caps to give customers a variety of choices.

98H Series is 40-80 amps. Suitable for weld cleaning machines, electric wheelchairs, mobility scooters, ATVs, winches, battery protection, motor protection, inverters, etc ...

UL(USA) certified.

Inquiry
Product Introduction

Key Features

  1. Following UL1077 Standard
  2. High current circuit breaker: High Current Interrupt Capability.
  3. Use bakelite as the main body. High temperature resistance. High security.
  4. Trip Free Cycling.

Ratings

  1. Current rating range : 40A--90A
  2. Input voltage rating : 125/250VAC; 32/50VDC
  3. Interrupting Capacity : 125/250VAC x 1,000A(UL 1077)

Testing Performed

  1. Current test : 200% current full-inspect test
  2. Dielectric Strength Test : 1500VAC/min
  3. Glow-wire test : 850°

Safety Certification

  • Electrical appliances certification : UL
  • Environmental standards : RoHS

Add-on Service

Provide sleeves to easen the nuts installation, and increase efficiency.

Regarding wire installation, we provide anti-slip screws to customers for easy installation.

As for package, we provide customers with customized services.
