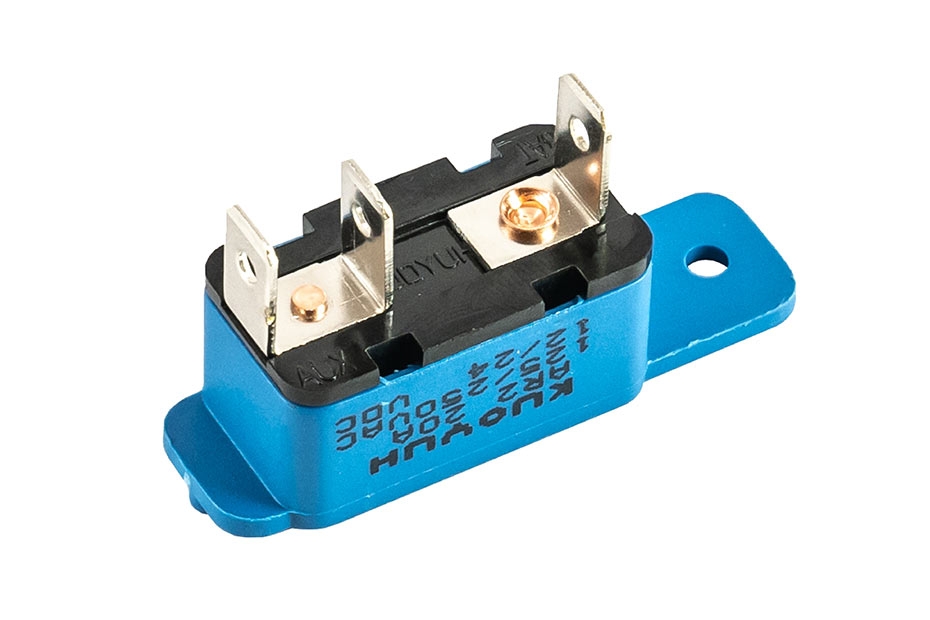

AR2 Series Auto-Reset-Circuit Breaker

AR2 Series Auto Reset Electronic Circuit breakers
Product Name : AR2 Series Auto-Reset-Circuit Breaker
Product Description

AR2 Series auto reset electronic circuit breaker is a unipolar and freecycle trip protection device. Commonly known as battery charger auto circuit breakers.

The AR2 Series products are made of thermosetting plastic with a plastic upper cover. The terminal part is 250’’(6.3mm）quick connects.

AR2 Series is 3A--20A, suitable for RV cars, battery chargers, jump starters, and trolling motors.

Inquiry
Product Introduction

Key Features

  1. Following SAE J553 Standard.
  2. Trip Free Cycling.
  3. Use UL-Rated 94V-0 Thermosetting plastics body.

Ratings

  1. Current rating range : 3A--20A
  2. Input voltage rating : 14VDC/28VDC
  3. Interrupting Capacity : 1500A/12 VDC

Testing Performed

  1. Current test : 200% current full-inspect test
  2. Dielectric Strength Test : 1,500VAC/min.

Safety Certification

  • Electrical appliances certification : UL, SAE
  • Environmental standards : RoHS
