AR Series Metal Cover Auto-Reset-Circuit Breaker

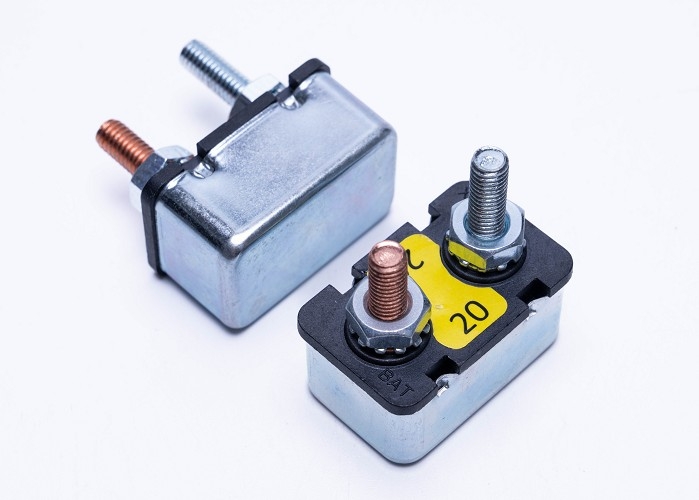

KUOYUH AR Series 20A Metal Cover Auto-Reset-Circuit Breaker

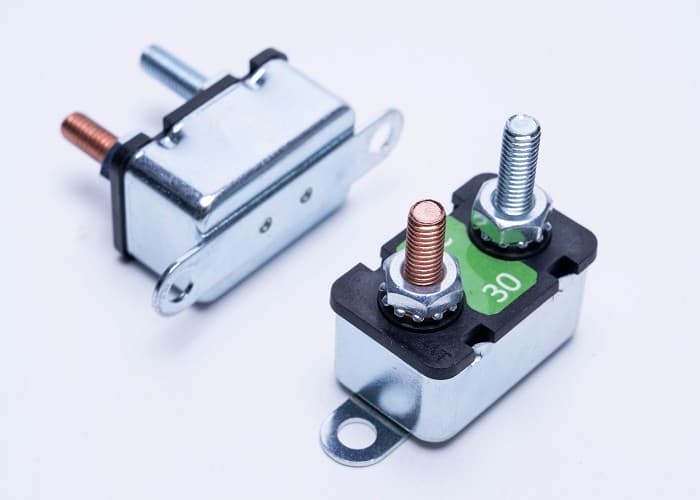

KUOYUH AR Series 30A Metal Cover Auto-Reset-Circuit Breaker

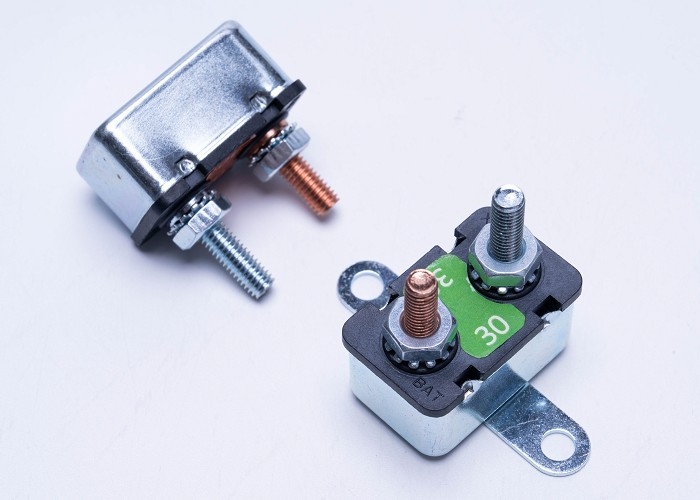

KUOYUH AR Series 30A Metal Cover Auto-Reset-Circuit Breaker

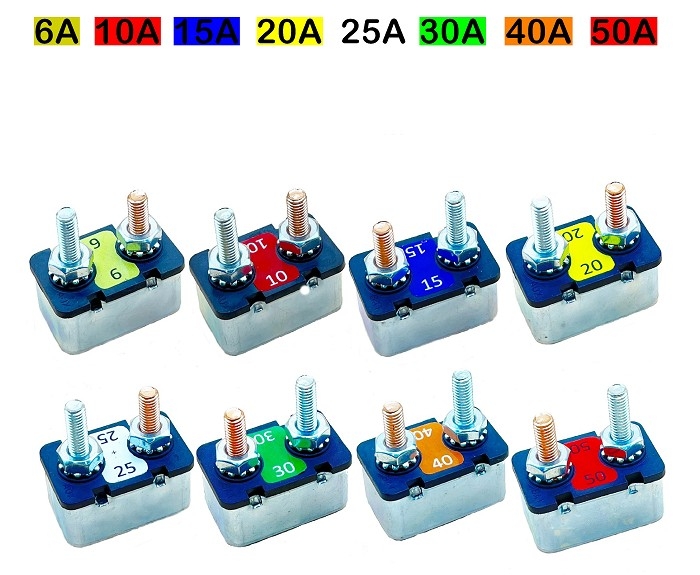

KUOYUH AR Series Metal Cover Auto-Reset-Circuit Breakers
Product Name : AR Series Metal Cover Auto-Reset-Circuit Breaker
Product Description

AR series automatic-reset circuit breaker is a unipolar and freecycle trip protection device. Commonly known as shortstop circuit breaker / #10-32 studs circuit breaker

The AR series products are made of thermosetting plastic with a metal upper cover and a plastic upper cover. The stud terminal part is #10-32 thread and 0.25" quick-connect.

AR series is 3A-50A, Suitable for marine, agricultural tractors, RV Cars, ATVs, winchs, electric anchors, battery chargers, jump starters, trolling motors, pressure washers, etc.

Passed UL certification. Passed RoHS environmental protection certification…

Inquiry
Product Introduction

Key Features

  1. Following SAE J553 Standard and SAE J1171 Standard.
  2. Trip Free Cycling.
  3. Use UL-Rated 94V-0 Thermosetting plastics body.

Ratings

  1. Current rating range : 5A--60A
  2. Input voltage rating : 14VDC/28VDC
  3. Interrupting Capacity : 2500A/12 VDC

Testing Performed

  • Current test : 200% current full-inspect test
  • Dielectric Strength Test : 1800VAC/min
  • Corrosion : 96hr salt-spray

Safety Certification

  • Electrical appliances certification : UL, SAE
  • Environmental standards : RoHS

Add-on Service

Regarding laser printing, we provide OEM service.

As for package, we provide customers with customized services.
