Reasons for Using KUOYUH 16-8F Series High-Amp Circuit Breaker on Truck Liftgate

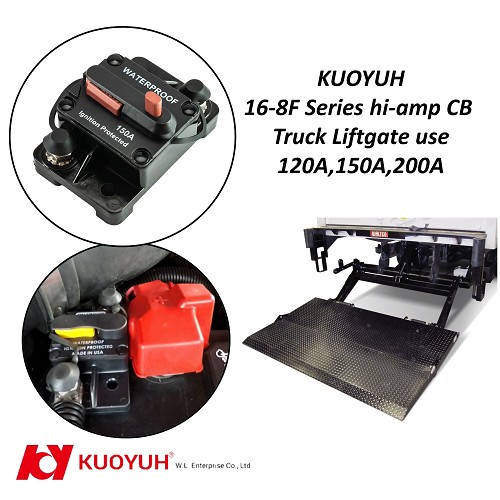

Why Use KUOYUH 16-8F Series High-Amp Circuit Breaker on a Truck Liftgate?
- High Current Demand: Liftgates require substantial power, especially when lifting heavy loads. The KUOYUH 16-8F series high-amp circuit breaker ensures the circuit can handle the high current demand without tripping unnecessarily during normal operation.
- Circuit Protection: The KUOYUH 16-8F series circuit breaker protects the wiring and components from damage caused by overcurrent or short circuits. Since liftgate motors and wiring are costly to replace, the proper circuit breaker helps avoid expensive repairs.
- Safety: High currents can generate heat, creating a fire hazard. The KUOYUH 16-8F series circuit breaker minimizes this risk by cutting off power during faults, ensuring the safety of the vehicle, cargo, and operator.
- Reliability: The KUOYUH 16-8F series circuit breaker is designed to withstand the inrush current of the liftgate motor at startup, which can temporarily draw more current than during continuous operation. This prevents nuisance tripping and ensures consistent performance.
- Durability for Heavy-Duty Applications: Built for demanding environments, the KUOYUH 16-8F series breaker is designed to withstand frequent use and the harsh conditions trucks often face, including extreme temperatures and vibrations.
- Compliance with Standards: The KUOYUH 16-8F series breaker meets safety and operational standards, such as SAE specification, ensuring the system is compliant and legal.
- Ease of Maintenance: Circuit breakers like the KUOYUH 16-8F series are easier to maintain than fuses, which must be replaced when blown. Circuit breakers can simply be reset, making them especially useful for liftgates that may experience occasional overloads.
How to Select the Right Circuit Breaker for a Truck Liftgate
1. Determine the Liftgate’s Electrical Specifications
- • Motor Voltage: Identify the operating voltage of the liftgate (commonly 12V or 24V DC).
- • Current Draw: Check the maximum current draw (amps) of the liftgate motor during normal operation, usually found in the manufacturer’s specifications.
- • Startup Surge Current: Consider the inrush current of the motor during startup, which may be 2–3 times higher than the running current.
2. Choose the Circuit Breaker Amp Rating
- • Continuous Current Rating: Select a breaker with an amp rating 125–150% higher than the liftgate’s normal operating current to accommodate the startup surge.
- • Example: If the liftgate motor draws 60 amps during operation, consider a breaker rated for 75–90 amps.
- • Avoid Oversizing: Do not use an overly high-rated breaker, as it may fail to trip during faults, putting the system at risk.
3. Verify Compatibility with Wiring
- • Ensure the circuit breaker’s amp rating matches the gauge of the wiring used in the liftgate system. The wire must safely handle the current allowed by the breaker.
- • Example: A 70A breaker requires wiring rated for at least 70 amps, such as 4 AWG or larger, depending on the wire length.
4. Select the Type of Circuit Breaker
- • Manual Reset Breakers: Require manual resetting after tripping, making them ideal for troubleshooting and ensuring safe operation.
- • Automatic Reset Breakers: Automatically reset after tripping, suitable for intermittent issues but less effective for diagnosing problems.
- • Weatherproof Design: Use a weatherproof or sealed circuit breaker for outdoor or rugged environments to protect against moisture, dust, and vibration. ( KUOYUH 16 series meets IP67 waterproof specifications).
5. Match the Voltage Rating
- • The circuit breaker’s voltage rating should be equal to or exceed the truck’s electrical system voltage.
- • Example: 12V or 24V DC systems require a breaker rated for at least the same voltage or higher.
6. Consider Environmental Conditions
- • Temperature: Ensure the circuit breaker is rated for the ambient temperature range of the truck’s operating conditions.
- • Vibration Resistance: Select a breaker designed for automotive or heavy-duty use to handle constant vibration.
7. Follow Manufacturer Recommendations
- • Consult the liftgate manufacturer’s manual for recommended circuit breaker specifications. Many manufacturers specify the exact amp rating or breaker model suitable for their equipment.
8. Comply with Standards
- • Ensure the breaker complies with relevant safety standards, such as SAE (Society of Automotive Engineers) or DOT (Department of Transportation) requirements.
9. Test the System
- • After installation, test the liftgate under various conditions (e.g., lifting the maximum load) to ensure the breaker does not trip during normal operation but responds appropriately to faults or overloads.
Conclusion
Using the KUOYUH 16-8F series high-amp circuit breaker on a truck liftgate provides effective circuit protection, safety, and reliability, especially for liftgate systems with high current demands. It not only prevents damage from overloads and short circuits but also withstands harsh environments while complying with relevant safety standards. Additionally, its resettable feature significantly reduces maintenance time, making it particularly valuable for frequently used liftgate systems.
When selecting a circuit breaker, it’s important to consider the liftgate’s voltage, current requirements, and operating environment. Ensuring the breaker’s amp rating, compatibility, and type match the system will guarantee stable operation, reduce repair risks, and extend the equipment’s lifespan.
