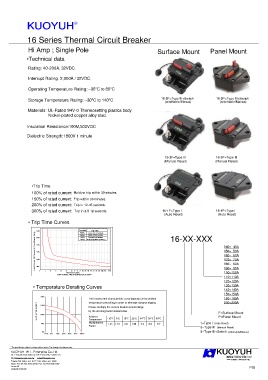

16 Series Thermal Circuit Breaker

Hi Amp ; Single Pole Surface Mount Panel Mount

•Technical data
Rating: 40-200A, 32VDC.

Interrupt Rating: 2,000A / 32VDC.

Operating Temperature Rating: –30°C to 80°C

Storage Temperature Rating: –30°C to 140°C 16-8F=Type III+Switch 16-8P=Type III+Switch
(witchable/Manua)
(witchable/Manua)
Materials: UL-Rated 94V-0 Thermosetting plastics body.
Nickel-plated copper alloy stud.

Insulation Resistance:100M,500VDC

Dielectric Strength:1800V 1 minute

16-3F=Type III 16-3P=Type III
(Manual Reset) (Manual Reset)

•Trip Time
100% of rated current: Hold,no trip within 30 minutes.
150% of rated current: Trip within 30 minutes.
200% of rated current: Trip in 12-45 seconds.
300% of rated current: Trip in 3.5-12 seconds. 16-1F=Type I 16-1P=Type I
(Auto Reset) (Auto Reset)
• Trip Time Curves

Trip Time
600% Overload Hold,no trip within 30 minutes. 16-XX-XXX
Load Current AS Percent of Circuit Breaker Rating 400% 040= 40A
300%
Trip in 3.5-12 seconds.
Trip in 12-45 seconds.
200%
Trip within 30 minutes.
150%
500%
100%
050= 50A
300%
060= 60A
070= 70A
200%
100%
090= 90A
0 5 10 15 20 25 30 40 45 50 100 200 300 400 500 100 500 1000 2000 10000 080= 80A
TIME IN SECONDS 100=100A
TRIP CURVES ARE SPECIFIED OF 25°C/77°F
110=110A
120=120A
• Temperature Derating Curves 130=130A
140=140A
150=150A
200%
The time/current characteristic curve depends on the ambient 180=180A
200=200A
temperature prevailing,In order to eliminate nuisance tripping.
% OF RATED CURRENT 150% Please multiply the current breaker current ratings F=Surface Mount
by the derating factor shown below.
100%
P=Panel Mount
Ambient
Temperaure
Mulitiplication -10°C 0°C 10°C 25°C 40°C 50°C 60°C 1=Type I (Auto Reset)
50% 1.25 1.15 1.05 1.00 0.9 0.8 0.7
Factor
3=Type III (Manual Reset)
0% 8=Type III+Switch (witchable/Manua)
-10°C 0°C 10°C 25°C 50°C 75°C 100°C
* The specification subject to change without notice. The drawing is for reference only.
