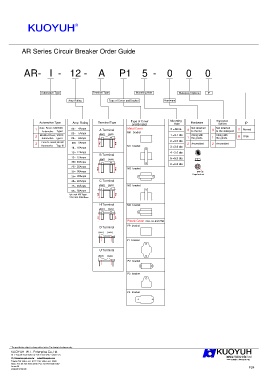

AR Series Circuir Breaker Order Guide

AR- I - 12 - A P1 5 - 0 0 0

Automotive Type Terminal Type Muonting Hole Waterpoof Options IP

Amp Rating Type of Cover and Bracket Hardware

Automotive Type Amp Rating Terminal Type Type of Cover Muonting Hardware Waterpoof IP
Options
Hole
and Bracbet
Auto- Reset; 12/24VDC Not attached Not attached
1 04= 4Amps A Terminal Metal Cover 0 =None 0 Normal
Automotive Type I M0 bracket 0 to the nut 0 to the waterpoof
Modified Reset; 12VDC 05= 5Amps 1 =3.1 dia Along with Along with
2 A IP66
Automotive Type II 06= 6Amps 1 the goods. 1 the goods.
2 =3.5 dia
Push to Reset; 24VDC
3 08= 8Amps 2 Assembled 2 Assembled
Automotive Type III M1 bracket 3 =3.9 dia
10= 10Amps
12= 12Amps 4 =5.0 dia
B Terminal
15= 15Amps 5 =5.8 dia
20= 20Amps
6 =6.8 dia
25= 25Amps
M2 bracket
30= 30Amps
Keps lock nut
35= 35Amps
40= 40Amps C Terminal
45= 45Amps M3 bracket
50= 50Amps
*3A-20A PBT Base
*25A-50A POM Base
H Terminal M4 bracket
Plastic Cover CUL ULE317794
P0 bracket
D Terminal
P1 bracket
U Terminal

P2 bracket

P3 bracket

P4 bracket

* The specification subject to change without notice. The drawing is for reference only.
