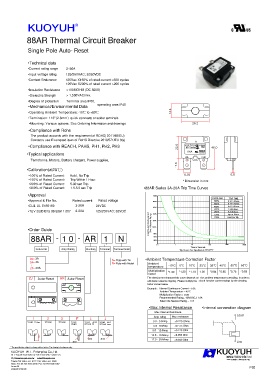

88AR Thermal Circuit Breaker

Single Pole Auto- Reset

•Technical data
•Current rating range 3~30A
•Input voltage rating 125/250VAC; 32/50VDC
•Contact Endurance 125Vac X150% of rated current >500 cycles
125Vac X200% of rated current >200 cycles
•Insulation Resistance >100MOHM (DC 500V)
•Dielectric Strength > 1,500VAC/min.
•Degree of protection Terminal area IP00,
•Mechanical/Environmental Data operating area IP40
•Operating Ambient Temperature: -10 to +60℃ ℃
•Termination: 110’’(2.8mm）quick connects or solder terminals
•Mounting: Various options. See Ordering Information and drawings
•Compliance with Rohs
The product accords with the requirement of ROHS( 2011/65/EU)
Contacts use Exempted item of RoHS Directive 2010/571/EU 8(a)
A
•Compliance with REACH, PAHS, PH1, PH2, PH3 KUOYUH T U .. SUD V 125/250V AC
32V DC
88 Series
50/60Hz
S
Suppl Port
XXA C US TC2/OL0/C1
125/250V AC
•Typical applications
LINE LOAD
Tarnsforms, Motors, Battery chargers, Power supplies,
•Calibration(at25 )℃
•100% of Rated Current: Hold , No Trip
•150% of Rated Current: Trip Within 1 Hour. * Dimension in mm:
•200% of Rated Current: 5-30 sec Trip
•300% of Rated Current: 1.5-5.0 sec Trip •88AR Series 3A-20A Trip Time Curves
•Approval 1000%
OVERLOAD TRIP TIME
•Approval & File No. Rated current Rated voltage 800% 600% 0.34-1.05sec
500%
•CUL UL E155159 3-20A 24VDC 400% 0.42-1.75sec
0.62-3.05sec
600%
1.50-5.5sec
•TUV SUD B15 09 58611 007 3-20A 125/250VAC; 32VDC 500% 300% Trip in 1Hour
200%
5.2-30.0sec
Load Current AS Percent of Circuit Breaker Rating 400%
150%
100%
Hold,No Trip
•Order Guide 300%
88AR - 1 0 - AR 1 N 200%
150%
100%
0.1 1 10 100 1000 10000
Time in Seconds
Series No. Amp Rating Bushing Terminal Terminal finish Trip Curves Are Specified of 25°C/77°F
03= 3A S= Plate with Tin •Ambient Temperature Correction Factor
04= 4A N=Plate with Nickel
. . . . . Ambient -10°C 0°C 10°C 25°C 35°C 40°C 50°C 60°C
20= 20A temperature
Multiplication *1.30 *1.20 *1.10 1.00 *0.94 *0.85 *0.73 *0.68
factor
ZJ Auto-Reset AR Auto-Reset The time/current characteristic curve depends on the ambient temperature prevailing. In order to
eliminate nuisance tripping. Please multiply the circuit breaker current ratings by the derating
factor shown below.
Example : Normal Continuous Current = 10A
Ambient Temperature = 45°C
Multiplication Factor = 0.85
Recommended Rating= 10A/0.85=11.8A
Select the Nearest Rating = 12A
•Max.Internal Resistance •Internal connection diagram
Max.Internal Resistance
Load
Amp rating Max resistance
1 2 3 F L J
Straight 11.8mm 90° bend 90° bend Screwa Screwa #8-32 Screwa #8-32 3.0 - 5.0Amp <0.225 Ohms
Straight 90° bend up 90° bend down
6.0 - 8.0Amp <0.175 Ohm
9.0 - 12.0Amp <0.125 Ohm
13.0 - 16.0Amp <0.050 Ohm
11.8 #8-32 #8-32 17.0 - 20.0Amp <0.040 Ohm
#8-32 Line
* The specification subject to change without notice. The drawing is for reference only.
