R

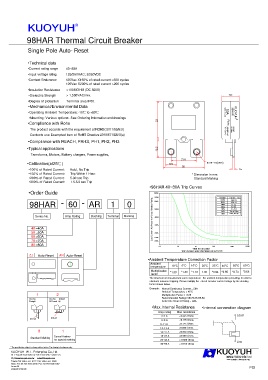

98HAR Thermal Circuit Breaker

Single Pole Auto- Reset

•Technical data
•Current rating range 40~80A
•Input voltage rating 125/250VAC; 32/50VDC
•Contact Endurance 125Vac X150% of rated current >500 cycles
125Vac X200% of rated current >200 cycles
•Insulation Resistance >100MOHM (DC 500V)
•Dielectric Strength > 1,500VAC/min.
•Degree of protection Terminal area IP00.
•Mechanical/Environmental Data
•Operating Ambient Temperature: -10 to +60℃ ℃ MADE IN TAIWAN 80A 98HAR KUOYUH
•Mounting: Various options. See Ordering Information and drawings
•Compliance with Rohs Rohs
The product accords with the requirement of ROHS( 2011/65/EU) TC1/OL0/C1 125/250VAC 50/60Hz 50VDC
Contacts use Exempted item of RoHS Directive 2010/571/EU 8(a)
•Compliance with REACH, PAHS, PH1, PH2, PH3
•Typical applications
Tarnsforms, Motors, Battery chargers, Power supplies,

•Calibration(at25 )℃
•100% of Rated Current: Hold , No Trip
•150% of Rated Current: Trip Within 1 Hour. * Dimension in mm:
•200% of Rated Current: 5-30 sec Trip Standard Marking
•300% of Rated Current: 1.5-5.0 sec Trip
•98HAR 40~80A Trip Curves
•Order Guide 1000%
800% Overlaod Trip time sec
1000%
98HAR - 60 - AR 1 0 600% 800% 0.48-2.8
0.58-3.1
500%
1.1-4.2
300%
3.2-8.2
8.5-45.0
200%
500%
Hold, No Trip
100%
Series No. Amp Rating Bushing Terminal Marking Load Current AS Percent of Circuit Breaker Rating 400% 150% Trip in 1Hour
40=40A 300%
50=50A 200%
60=60A 150%
70=70A 100%
80=80A
0.1 1.0 10 100 1000 10000
TIME IN SECONDS
TRIP CURVES ARE SPECIFIED OF 25°C/77°F
ZJ Auto-Reset AR Auto-Reset
•Ambient Temperature Correction Factor
Ambient
temperature -10°C 0°C 10°C 25°C 35°C 40°C 50°C 60°C
Multiplication *1.30 *1.20 *1.10 1.00 *0.94 *0.85 *0.73 *0.68
factor
The time/current characteristic curve depends on the ambient temperature prevailing. In order to
eliminate nuisance tripping. Please multiply the circuit breaker current ratings by the derating
factor shown below.
Example : Normal Continuous Current = 50A
Ambient Temperature = 45°C
1 2 Multiplication Factor = 0.85
Recommended Rating= 50A*0.85=58.8A
Screwa Screwa #10/24
Straight 90° bend up Select the Nearest Rating = 60A
•Max.Internal Resistance •Internal connection diagram
Amp rating Max resistance
3~5 A <0.225 Ohms Load
#10-24 #10-24
6~8 A <0.175 Ohms
9~11 A <0.125 Ohms
12~13 A <0.050 Ohms
0 1 14~17 A <0.040 Ohms
Consult factory 18~24 A <0.030 Ohms
Standard Marking
for special marking 25~35 A < 0.020 Ohms
Line
36~50 A < 0.010 Ohms
* The specification subject to change without notice. The drawing is for reference only.
KUOYUH W.L. Enterprise Co.,Ltd.
No.17 Kejia 6th Road Douliu City YunLin Hsien 64057 Taiwan R.O.C
國郁企業股份有限公司
http//www.kuoyuh.com.tw sales@kuoyuh.com
64057 雲林縣斗六市科加六路17號
Taiwan Tel: 886 5 551 3222 Fax: 886 5 551 3030
China Tel: 86 769 8366 6388 Fax: 86 769 8366 6362
Issue:A0 P22
Date:2017.02.20
